Wahoo

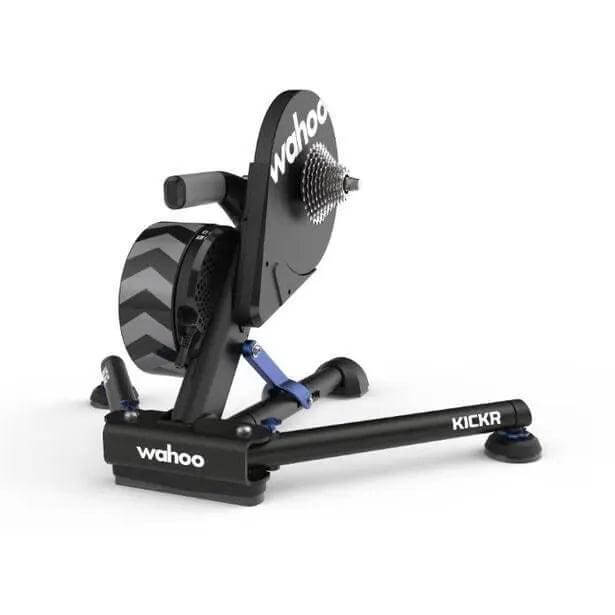

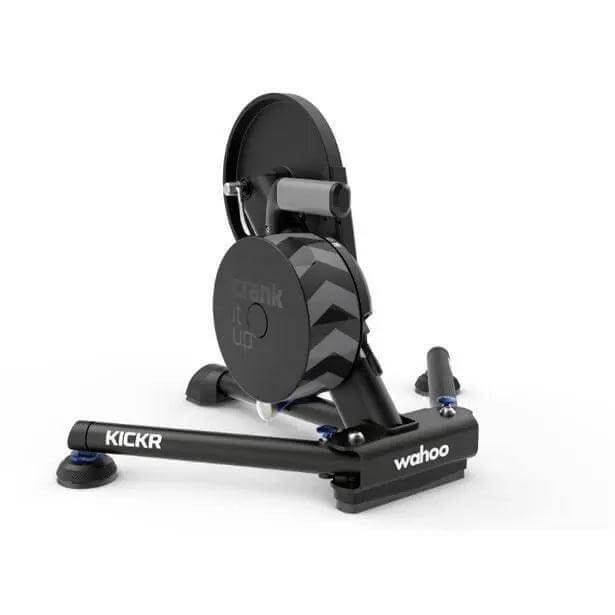

The newest version KICKR Smart Trainer delivers the most realistic ride feel and precise power with the addition of KICKR AXIS action feet and improved power accuracy of +/- 1%. The KICKR continues to provide the best in class indoor smart trainer design with carbon steel body for durability and stability, to hold up to the demands of all types of cyclist. Its unmatched compatibility expands to include three simultaneously Bluetooth connections for a trouble-free start to your workout. Get the immersive, game changing indoor riding experience when you pair with our KICKR CLIMB Indoor Grade Simulator and Bluetooth & ANT+ controlled KICKR HEADWIND Smart Fan.

SPECS

• Part Number: WFBKTR120
• KICKR Version: 5 (produced starting August 2020)
• Shipping Weight: 55 lb
• Box Dims: 26"L x 12"W x 22"H
• Country of Origin: Vietnam
• Product Dimensions: 20x28x17 in // 51x71x44 - Legs open configuration
• Weight: 47 lb // 22 kg
• Drivetrain: Belt Drive
• Resistance Type: Electromagnetic
• Accuracy: +/- 1%
• Wireless Software Updates: Yes, via the Wahoo Fitness app
• Connectivity: ANT+ FEC, Bluetooth
• Max User Weight: 250lbs // 114 kg
• Power Requirements: 100-240V~1.5A 50-60 Hz
• Flywheel Weight: 16 lb // 7.3 kg
• Maximum Simulated Grade: +20
• Minimum Simulated Grade: -10
• Maximum Power Output: 2200 Watts
• Rear Wheel Size: 24" RD / 24" MTB / 650c RD / 26" MTB / 700c RD / 650b MTB / 29" MTB
• Cassette: Included 11 Speed with 11-28 ratio

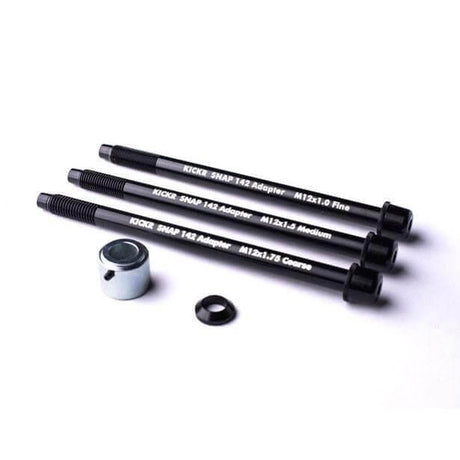

• Hub Types: 130/135mm QR, 12x142, and 12x148 Thru Axle
• Adapters: Included
• KICKR CLIMB Compatible Yes
• RPM Speed & Cadence: Not Required
• Front Wheel Block: Not Required
• Disc Brake Clearance: Yes

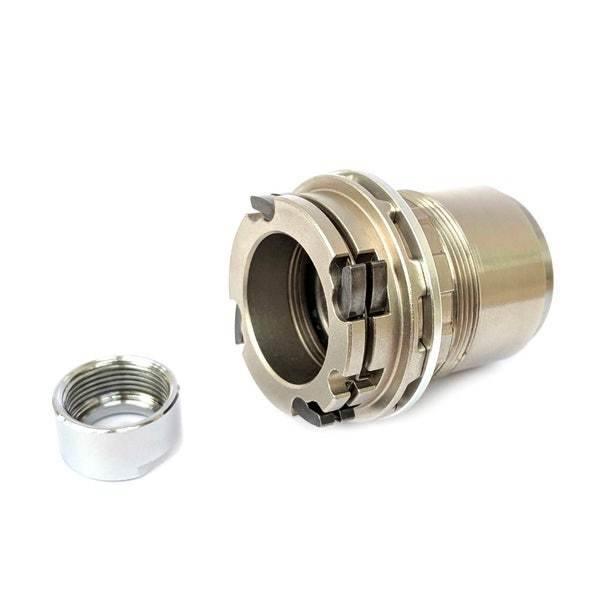

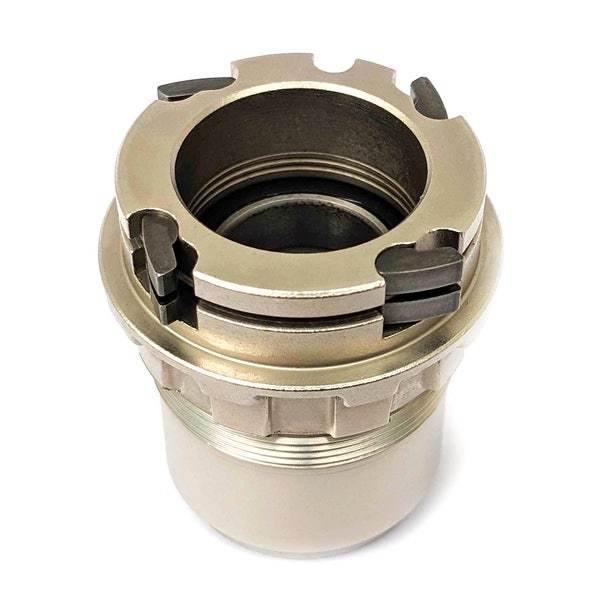

KICKR XDR Freehub body allows you to use your KICKR with the new SRAM AXS drive train system. This kit includes a 1.8mm spacer for XD compatibility.

Compatibility: KICKR '18, v5, and KICKR CORE

Please visit our support site for XDR product instructions.

A radically simplified multisport watch that delivers a seamless performance advantage.

ELEMNT RIVAL Multisport Watch keeps the focus locked on your performance, not your equipment. Using the intuitive ELEMNT operating system, RIVAL delivers a simple user experience. Unique multisport features like Touchless Transition, Multisport Handover and Perfect View Zoom create a seamless performance advantage whether training or competing. Designed with a 64 color screen, ceramic bezel and gorilla glass lens, ELEMNT RIVAL not only looks great for everyday use but will also withstand your hardest workouts.

SPECS

 CONNECTIVITY

 SENSORS

CLOCK FEATURES

SMART FEATURES

ACTIVITY TRACKING FEATURES

WORKOUT ANALYSIS FEATURES

INTEGRATIONS

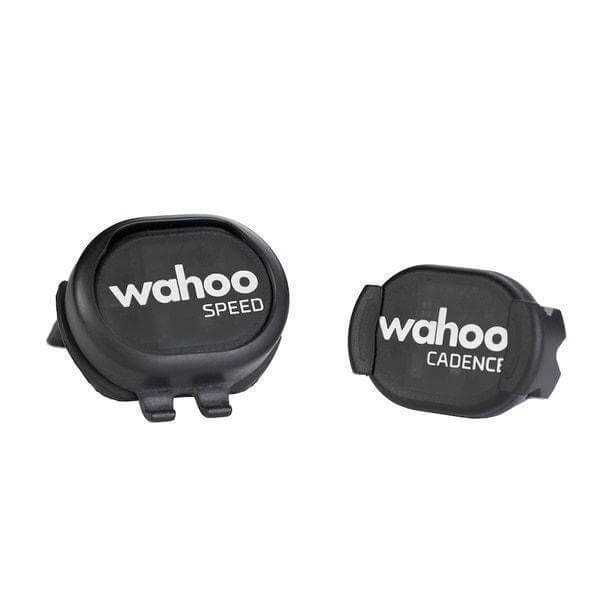

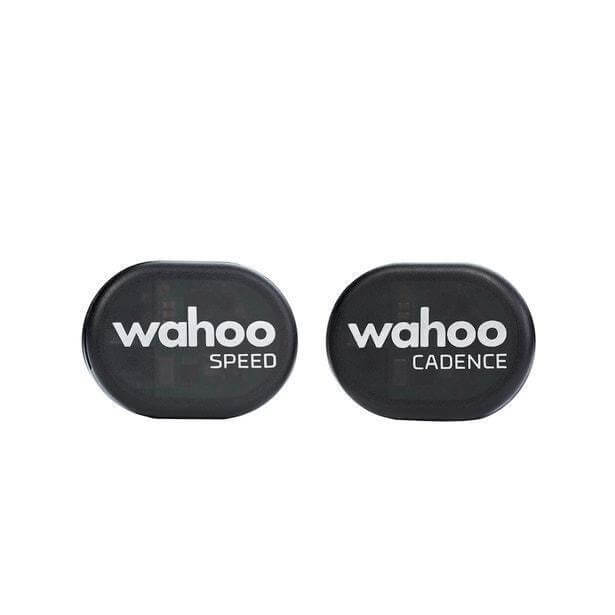

All you need for cycling data, all together at once! The Wahoo RPM Speed and Cadence sensors are both a sleek, wireless, and magnet-less solution. Each mounts easily to your bike and the Bluetooth Smart and ANT+ duel band technology allows you to connect and display data on both smartphone and bike computers.

FOR BOTH RPM CADENCE AND RPM SPEED

• Part Number: WFRPMC
• Dimensions (LxWxH): 1.25" x.75" x 1"
• Weight: 7 grams (without mount)
• Battery: CR2032
• Battery Life: Up to 12 months
• Water Rating: IPX7 (waterproof up to 5 ft)
• Wireless Signal Strength: Up to 10 feet
• *Note: Speed Sensor is NOT compatible with spin bikes

In the Box

FOR RPM CADENCE

• RPM Cadence sensor CR 2032 Battery (installed)
• Rubber Mounting Option
• Zipties
• Shoe Mount Option
• 3M double sided tape
• Quick Start Guide
• Important Product Info Guide

FOR RPM SPEED

• RPM Speed sensor CR 2032 Battery (installed)
• Hub Mounting Option
• Quick Start Guide
• Important Product Info Guide

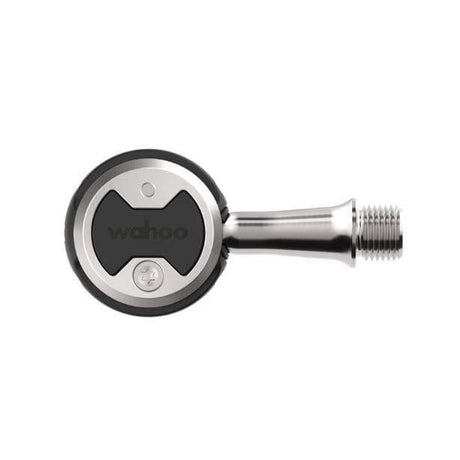

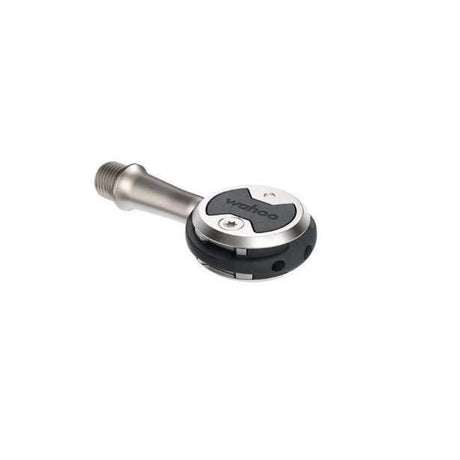

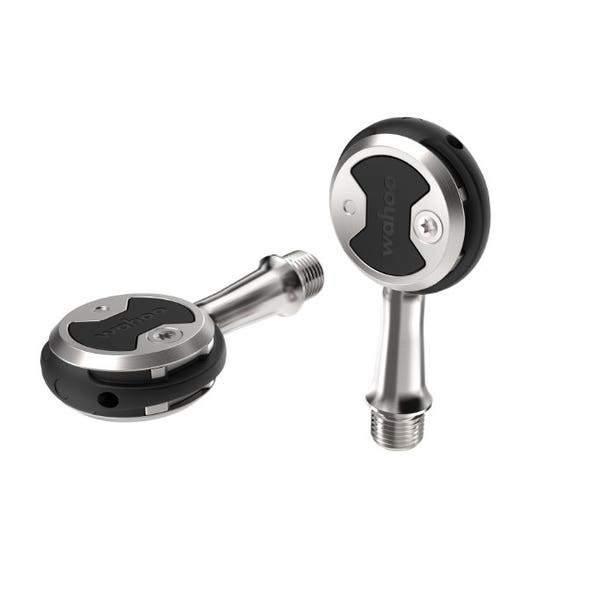

Engineered for Every Effort.

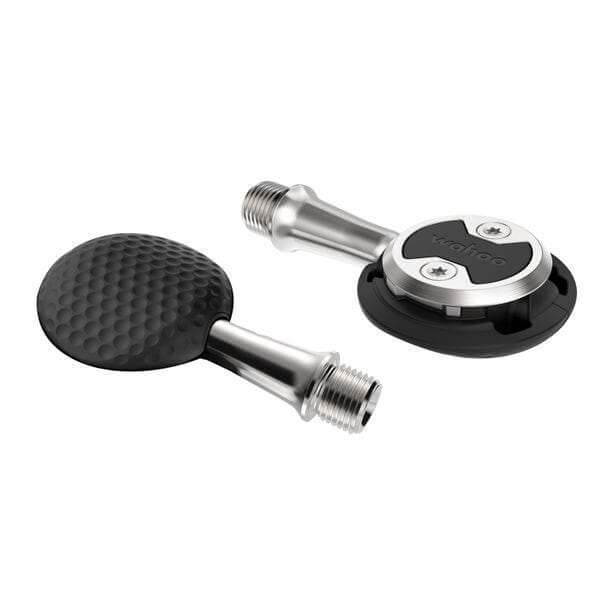

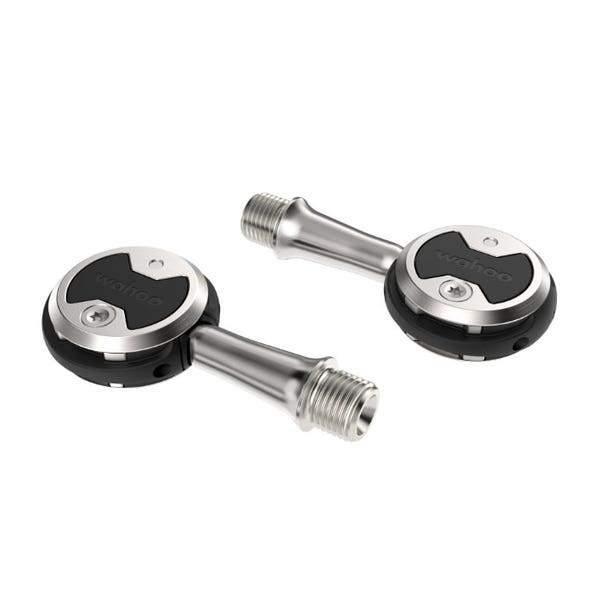

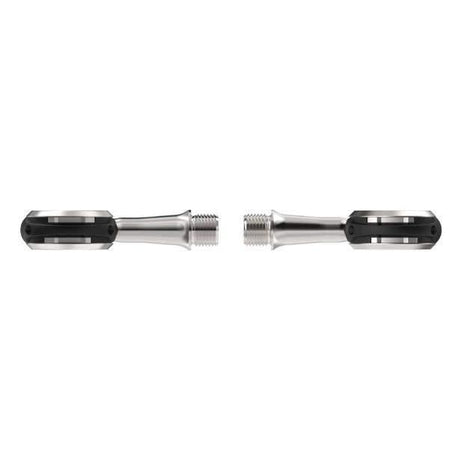

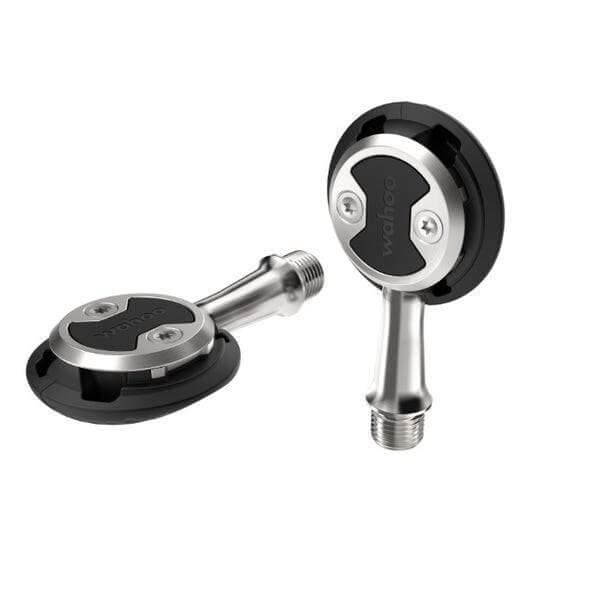

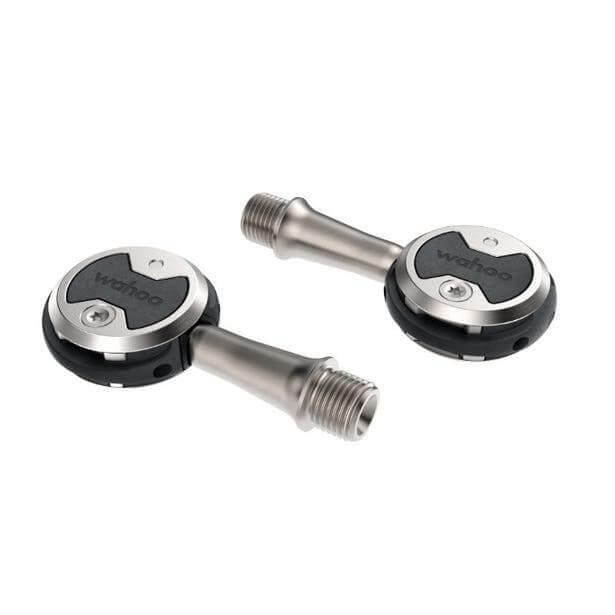

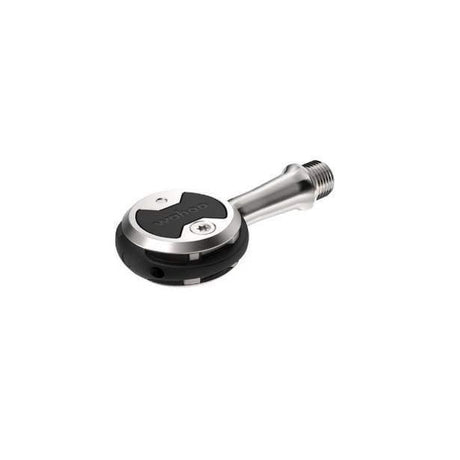

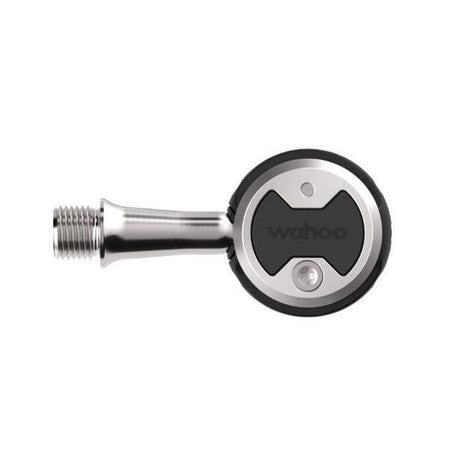

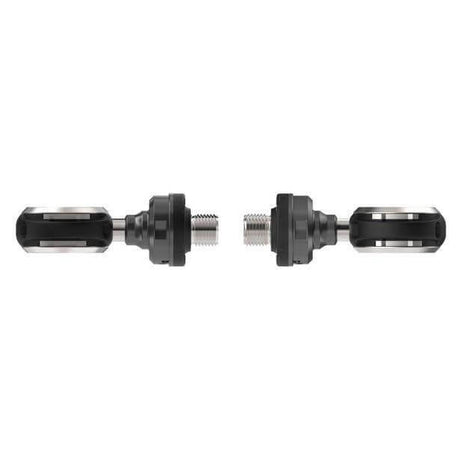

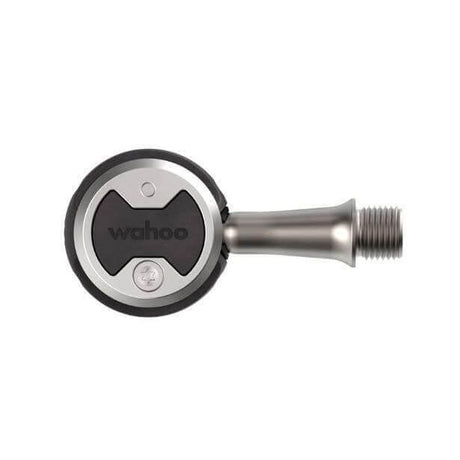

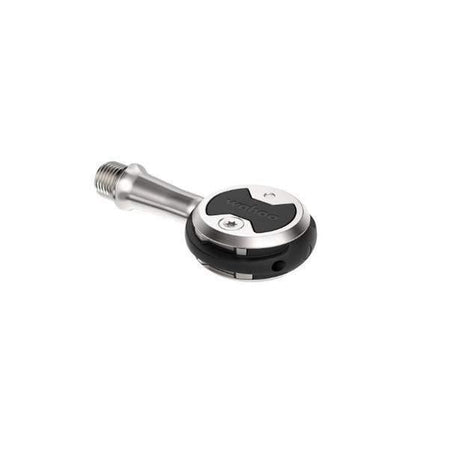

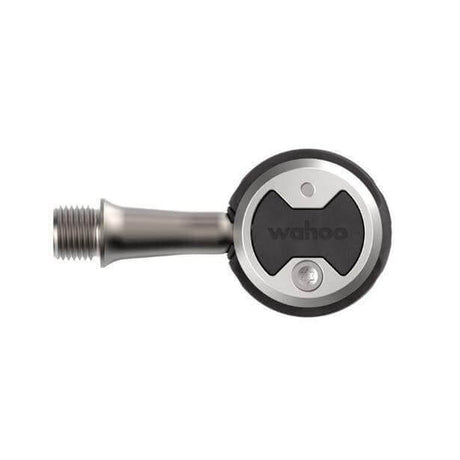

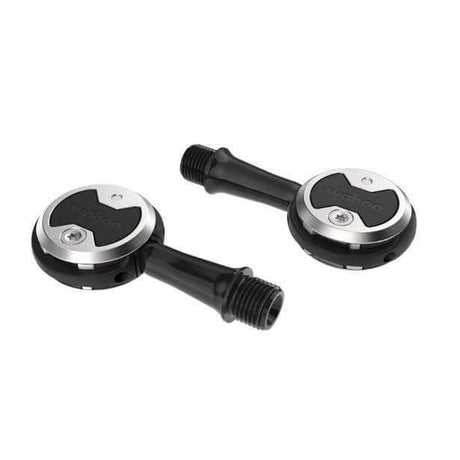

Built to take on anything, the SPEEDPLAY ZERO road pedal is uniquely qualified to withstand the demands of everything from all-out racing to the epic grind of a double-century. The stainless steel pedal and integrated cleat system offer peak power transfer and exceptional durability. The customized fit and dual-sided entry will allow you to crank on the pedals in confidence and comfort.

Engineered for Every Effort.

Built to take on anything, the SPEEDPLAY ZERO road pedal is uniquely qualified to withstand the demands of everything from all-out racing to the epic grind of a double-century. The stainless steel pedal and integrated cleat system offer peak power transfer and exceptional durability. The customized fit and dual-sided entry will allow you to crank on the pedals in confidence and comfort.

FEATURES

DUAL-SIDED ENTRY
SPEEDPLAY ZERO pedals' symmetrical form factor allows for dual-sided entry when clipping in. No more fumbling, fussing, or kicking your pedal over; take off when the light turns green and clip in with ease.

ENHANCED WALKABILITY

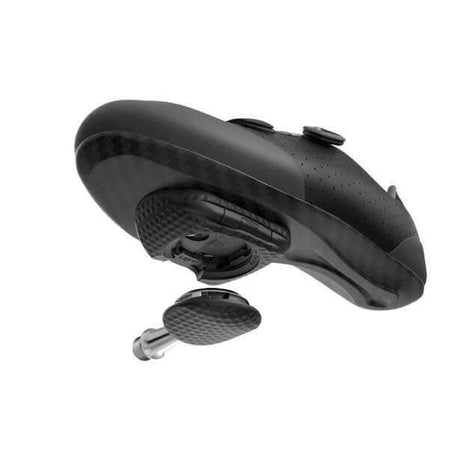

The slim profile cleat and rubber texture create enhanced stability when walking in your road shoes off the bike.

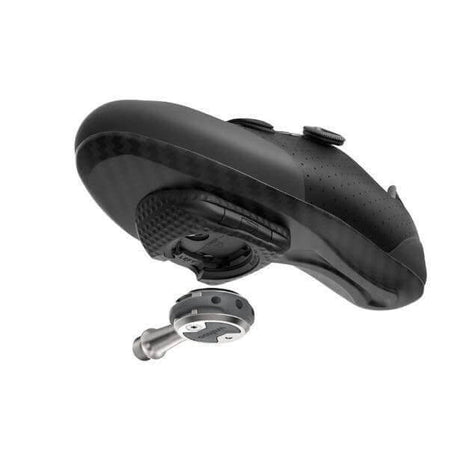

INTEGRATED PROFILE
SPEEDPLAY ZERO and Standard Tension Cleat create a seamless integration for a streamlined profile. The secure connection can contribute to an increase in the transfer of power, which can make it easier to attain those hard fought watts.

UNBEATABLE STACK HEIGHT
Best-in-class stack height of the SPEEDPLAY pedal decreases the amount of material between your shoe and spindle. This provides a solid connection for a more fluid transfer of power with every pedal stroke.

3-AXIS CLEAT ADJUSTABILITY

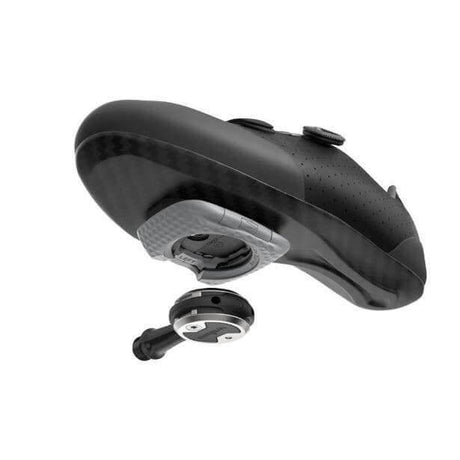

The Standard Tension Cleat can be positioned on the bottom of the shoe and adjusted fore-aft, left-right and rotationally, allowing between 0-15 degrees of float.

OPTIMIZED BIOMECHANICS
The 3-axis adjustability and slim stack height of the SPEEDPLAY Advanced Pedal System allows the rider to customize their fit on the bike with the largest range of optionality. The lower stack height can allow for increased power transfer and a decreased saddle height, which results in reduced drag.

ROTATIONAL FREE FLOAT
SPEEDPLAY pedals allow up to 15 degrees of float, allowing the heel to pivot around the center of the pedal. This range of motion in the foot, lower leg and knee increases comfort and enhances pedal efficiency.

SUPERIOR CORNERING CLEARANCE
The slim profile of the SPEEDPLAY Advanced Pedal System allows for the greatest degree of lean on the bike when riding tight corners. Pedal with confidence knowing your pedal won't strike the ground, and leave the competition in the dust.

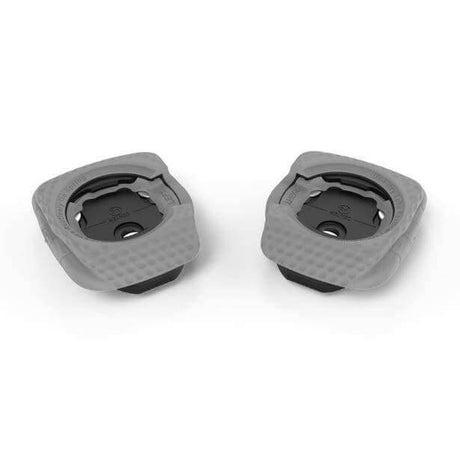

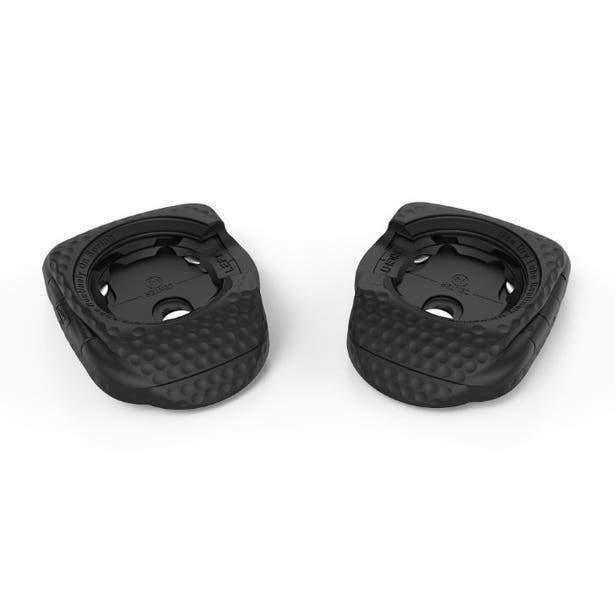

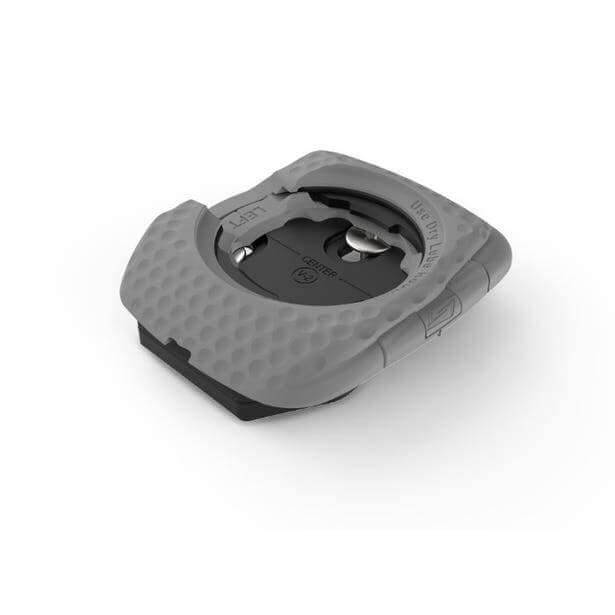

STANDARD TENSION CLEAT INCLUDED

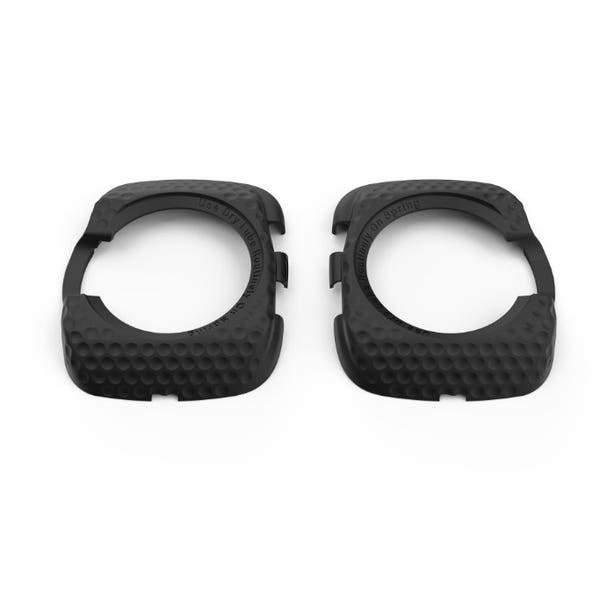

SPEEDPLAY ZERO pedals include a set of Standard Tension Cleats and cleat surrounds for the most aerodynamic profile & walkable system.

EASY TENSION CLEAT COMPATIBLE
SPEEDPLAY Advanced Pedal System has cross cleat compatibility. Purchase the Easy Tension cleat, sold separately, for less resistance when unclipping.

TECH SPECS

• Part Number: WFPRZ1S53
• Physical Dimensions: 3.9" x 2" x 2"
• Shipping Weight: 1.22lb
• Box Dimensions: 5.9" x 2" x 3.9"
• Country of Origin: Vietnam
• Weight: 222g per pair
• Stack Height: 11.5mm (3 hole) 8.5 (4 hole)
• Q Factor: 53mm
• Body Material: Grivory
• Spindle Material: Stainless Steel
• Bearing Type: Triple Sealed Cartridge & Needle Bearings
• Cornering Clearance: 39°
• Max Rider Weight: No restriction
• Cleats: Standard Tension Included
• Release Angle: Micro Adjustable from 0° to 7.5°
• Pedal Float: Adjustable from 0° to 15°
• Cleat Fore - Aft Adjustability: Up to 13mm
• Cleat Left - Right Adjustability: Up to 8mm
• Walkable Cleat: Yes (adaptor included)

IN THE BOX

• Left and Right Pedals
• Cleat Assembly
• Screw Packet
• Quick Start Guide
• Important Product Information Guide

Additional Tools Required for Assembly: #2 Philips Head Screwdriver and 8mm Allen Wrench

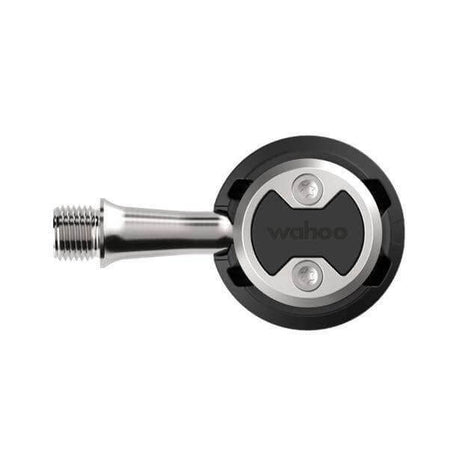

Dynamic Breakaway Speed.

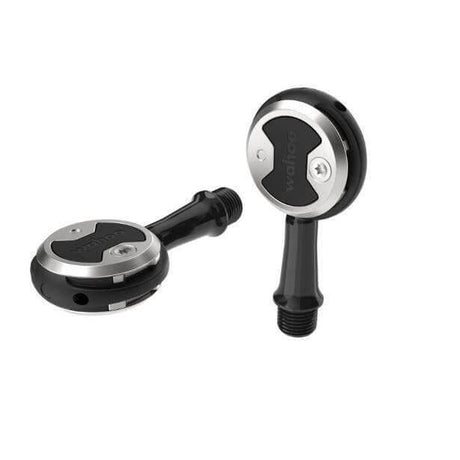

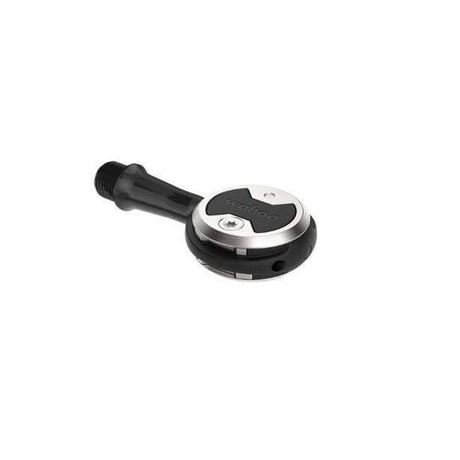

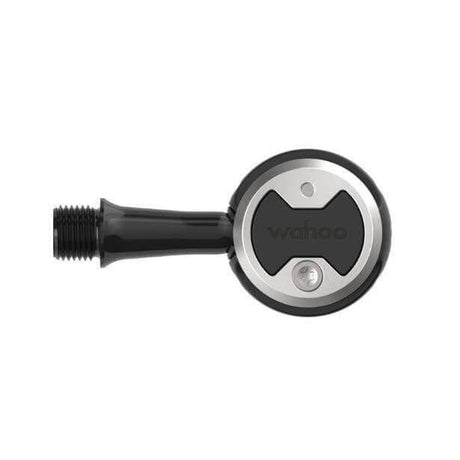

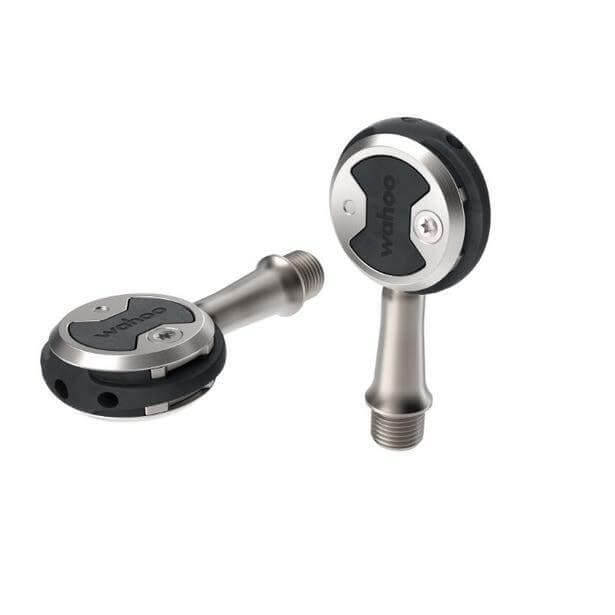

The SPEEDPLAY NANO is a featherweight, dual-sided road pedal that lives up to the demands of sprint finishes, categorized climbs, and tough training sessions. The mix of premium titanuim and carbon fiber materials create a lightweight but strong pedal that will hold up and deliver speed on the breakaway. The integrated cleat system with 3-axis adjustability allows you to precisely dial in your fit for optimized biometrics and increased power transfer.

FEATURES

DUAL-SIDED ENTRY
SPEEDPLAY NANO pedals' symmetrical form factor allows for dual-sided entry when clipping in. No more fumbling, fussing or kicking your pedal over; take off when the light turns green and clip in with ease.

ENHANCED WALKABILITY
The slim profile cleat and rubber texture create enhanced stability when walking in your road shoes off the bike.

INTEGRATED PROFILE
SPEEDPLAY NANO and Standard Tension Cleat create a seamless integration for a streamlined profile. The secure connection can contribute to an increase in the transfer of power, which can make it easier to attain those hard fought watts.

UNBEATABLE STACK HEIGHT
Best-in-class stack height of the SPEEDPLAY pedal decreases the amount of material between your shoe and spindle. This provides a solid connection for a more fluid transfer of power with every pedal stroke.

3-AXIS CLEAT ADJUSTABILITY
The Standard Tension Cleat can be positioned on the bottom of the shoe and adjusted fore-aft, left-right and rotationally, allowing between 0-15 degrees of float.

OPTIMIZED BIOMECHANICS
The 3-axis adjustability and slim stack height of the SPEEDPLAY Advanced Pedal System allows the rider to customize their fit on the bike with the largest range of optionality. The lower stack height can allow for increased power transfer and a decreased saddle height, which results in reduced drag.

ROTATIONAL FREE FLOAT
SPEEDPLAY pedals allow up to 15 degrees of float, allowing the heel to pivot around the center of the pedal. This range of motion in the foot, lower leg and knee increases comfort and enhances pedal efficiency.

SUPERIOR CORNERING CLEARANCE
The slim profile of the SPEEDPLAY Advanced Pedal System allows for the greatest degree of lean on the bike when riding tight corners. Pedal with confidence knowing your pedal won't strike the ground, and leave the competition in the dust.

STANDARD TENSION CLEAT INCLUDED
SPEEDPLAY NANO pedals include a set of Standard Tension Cleats and cleat surrounds for the most aerodynamic profile and walkable system.

EASY TENSION CLEAT COMPATIBLE
SPEEDPLAY Advanced Pedal System has cross cleat compatibility. Purchase the Easy Tension Cleat, sold separately, for less resistance when unclipping.

TECH SPECS

• Part Number: WFPRN1S53
• Physical Dimensions: 3.9" x 2" x 2"
• Shipping Weight: 1.1lb
• Box Dimensions: 5.9" x 2" x 3.9"
• Country of Origin: Vietnam
• Weight: 168g per pair
• Stack Height: 11.5mm (3 hole) 8.5 (4 hole)
• Q Factor: 53mm
• Body Material: Carbon Composite
• Spindle Material: Titanium
• Bearing Type: Triple Sealed Cartridge & Needle Bearings
• Cornering Clearance: 39°
• Max Rider Weight: 180lb / 82kg
• Cleats: Standard Tension Included
• Release Angle: Micro Adjustable from 0° to 7.5°
• Pedal Float: Adjustable from 0° to 15°
• Cleat Fore - Aft Adjustability: Up to 13mm
• Cleat Left - Right Adjustability: Up to 8mm
• Walkable Cleat: Yes (adaptor included)

IN THE BOX

• Left and Right Pedals
• Cleat Assembly
• Screw Packet
• Quick Start Guide
• Important Product Information Guide

Additional Tools Required for Assembly: #2 Philips Head Screwdriver and 8mm Allen Wrench
