Pedals and Cleats

Engineered for Every Effort.

Built to take on anything, the SPEEDPLAY ZERO road pedal is uniquely qualified to withstand the demands of everything from all-out racing to the epic grind of a double-century. The stainless steel pedal and integrated cleat system offer peak power transfer and exceptional durability. The customized fit and dual-sided entry will allow you to crank on the pedals in confidence and comfort.

Engineered for Every Effort.

Built to take on anything, the SPEEDPLAY ZERO road pedal is uniquely qualified to withstand the demands of everything from all-out racing to the epic grind of a double-century. The stainless steel pedal and integrated cleat system offer peak power transfer and exceptional durability. The customized fit and dual-sided entry will allow you to crank on the pedals in confidence and comfort.

FEATURES

DUAL-SIDED ENTRY
SPEEDPLAY ZERO pedals' symmetrical form factor allows for dual-sided entry when clipping in. No more fumbling, fussing, or kicking your pedal over; take off when the light turns green and clip in with ease.

ENHANCED WALKABILITY
The slim profile cleat and rubber texture create enhanced stability when walking in your road shoes off the bike.

INTEGRATED PROFILE
SPEEDPLAY ZERO and Standard Tension Cleat create a seamless integration for a streamlined profile. The secure connection can contribute to an increase in the transfer of power, which can make it easier to attain those hard fought watts.

UNBEATABLE STACK HEIGHT
Best-in-class stack height of the SPEEDPLAY pedal decreases the amount of material between your shoe and spindle. This provides a solid connection for a more fluid transfer of power with every pedal stroke.

3-AXIS CLEAT ADJUSTABILITY
The Standard Tension Cleat can be positioned on the bottom of the shoe and adjusted fore-aft, left-right and rotationally, allowing between 0-15 degrees of float.

OPTIMIZED BIOMECHANICS
The 3-axis adjustability and slim stack height of the SPEEDPLAY Advanced Pedal System allows the rider to customize their fit on the bike with the largest range of optionality. The lower stack height can allow for increased power transfer and a decreased saddle height, which results in reduced drag.

ROTATIONAL FREE FLOAT
SPEEDPLAY pedals allow up to 15 degrees of float, allowing the heel to pivot around the center of the pedal. This range of motion in the foot, lower leg and knee increases comfort and enhances pedal efficiency.

SUPERIOR CORNERING CLEARANCE
The slim profile of the SPEEDPLAY Advanced Pedal System allows for the greatest degree of lean on the bike when riding tight corners. Pedal with confidence knowing your pedal won't strike the ground, and leave the competition in the dust.

STANDARD TENSION CLEAT INCLUDED
SPEEDPLAY ZERO pedals include a set of Standard Tension Cleats and cleat surrounds for the most aerodynamic profile & walkable system.

EASY TENSION CLEAT COMPATIBLE
SPEEDPLAY Advanced Pedal System has cross cleat compatibility. Purchase the Easy Tension cleat, sold separately, for less resistance when unclipping.

TECH SPECS

• Part Number: WFPRZ1S53
• Physical Dimensions: 3.9" x 2" x 2"
• Shipping Weight: 1.22lb
• Box Dimensions: 5.9" x 2" x 3.9"
• Country of Origin: Vietnam
• Weight: 222g per pair
• Stack Height: 11.5mm (3 hole) 8.5 (4 hole)
• Q Factor: 53mm
• Body Material: Grivory
• Spindle Material: Stainless Steel
• Bearing Type: Triple Sealed Cartridge & Needle Bearings
• Cornering Clearance: 39°
• Max Rider Weight: No restriction
• Cleats: Standard Tension Included
• Release Angle: Micro Adjustable from 0° to 7.5°
• Pedal Float: Adjustable from 0° to 15°
• Cleat Fore - Aft Adjustability: Up to 13mm
• Cleat Left - Right Adjustability: Up to 8mm
• Walkable Cleat: Yes (adaptor included)

IN THE BOX

• Left and Right Pedals
• Cleat Assembly
• Screw Packet
• Quick Start Guide
• Important Product Information Guide

Additional Tools Required for Assembly: #2 Philips Head Screwdriver and 8mm Allen Wrench

Dynamic Breakaway Speed.

The SPEEDPLAY NANO is a featherweight, dual-sided road pedal that lives up to the demands of sprint finishes, categorized climbs, and tough training sessions. The mix of premium titanuim and carbon fiber materials create a lightweight but strong pedal that will hold up and deliver speed on the breakaway. The integrated cleat system with 3-axis adjustability allows you to precisely dial in your fit for optimized biometrics and increased power transfer.

FEATURES

DUAL-SIDED ENTRY
SPEEDPLAY NANO pedals' symmetrical form factor allows for dual-sided entry when clipping in. No more fumbling, fussing or kicking your pedal over; take off when the light turns green and clip in with ease.

ENHANCED WALKABILITY
The slim profile cleat and rubber texture create enhanced stability when walking in your road shoes off the bike.

INTEGRATED PROFILE
SPEEDPLAY NANO and Standard Tension Cleat create a seamless integration for a streamlined profile. The secure connection can contribute to an increase in the transfer of power, which can make it easier to attain those hard fought watts.

UNBEATABLE STACK HEIGHT
Best-in-class stack height of the SPEEDPLAY pedal decreases the amount of material between your shoe and spindle. This provides a solid connection for a more fluid transfer of power with every pedal stroke.

3-AXIS CLEAT ADJUSTABILITY
The Standard Tension Cleat can be positioned on the bottom of the shoe and adjusted fore-aft, left-right and rotationally, allowing between 0-15 degrees of float.

OPTIMIZED BIOMECHANICS
The 3-axis adjustability and slim stack height of the SPEEDPLAY Advanced Pedal System allows the rider to customize their fit on the bike with the largest range of optionality. The lower stack height can allow for increased power transfer and a decreased saddle height, which results in reduced drag.

ROTATIONAL FREE FLOAT
SPEEDPLAY pedals allow up to 15 degrees of float, allowing the heel to pivot around the center of the pedal. This range of motion in the foot, lower leg and knee increases comfort and enhances pedal efficiency.

SUPERIOR CORNERING CLEARANCE
The slim profile of the SPEEDPLAY Advanced Pedal System allows for the greatest degree of lean on the bike when riding tight corners. Pedal with confidence knowing your pedal won't strike the ground, and leave the competition in the dust.

STANDARD TENSION CLEAT INCLUDED
SPEEDPLAY NANO pedals include a set of Standard Tension Cleats and cleat surrounds for the most aerodynamic profile and walkable system.

EASY TENSION CLEAT COMPATIBLE
SPEEDPLAY Advanced Pedal System has cross cleat compatibility. Purchase the Easy Tension Cleat, sold separately, for less resistance when unclipping.

TECH SPECS

• Part Number: WFPRN1S53
• Physical Dimensions: 3.9" x 2" x 2"
• Shipping Weight: 1.1lb
• Box Dimensions: 5.9" x 2" x 3.9"
• Country of Origin: Vietnam
• Weight: 168g per pair
• Stack Height: 11.5mm (3 hole) 8.5 (4 hole)
• Q Factor: 53mm
• Body Material: Carbon Composite
• Spindle Material: Titanium
• Bearing Type: Triple Sealed Cartridge & Needle Bearings
• Cornering Clearance: 39°
• Max Rider Weight: 180lb / 82kg
• Cleats: Standard Tension Included
• Release Angle: Micro Adjustable from 0° to 7.5°
• Pedal Float: Adjustable from 0° to 15°
• Cleat Fore - Aft Adjustability: Up to 13mm
• Cleat Left - Right Adjustability: Up to 8mm
• Walkable Cleat: Yes (adaptor included)

IN THE BOX

• Left and Right Pedals
• Cleat Assembly
• Screw Packet
• Quick Start Guide
• Important Product Information Guide

Additional Tools Required for Assembly: #2 Philips Head Screwdriver and 8mm Allen Wrench

The KEO COVER are designed to protect your KEO cleats while walking. Compatible with KEO GRIP and KEO CLEAT, these covers lengthen the life of your cleats and improve safety when walking thanks to an anti-slip surface.

Compatibility KEO grip / KEO cleat
Use Protect the cleat

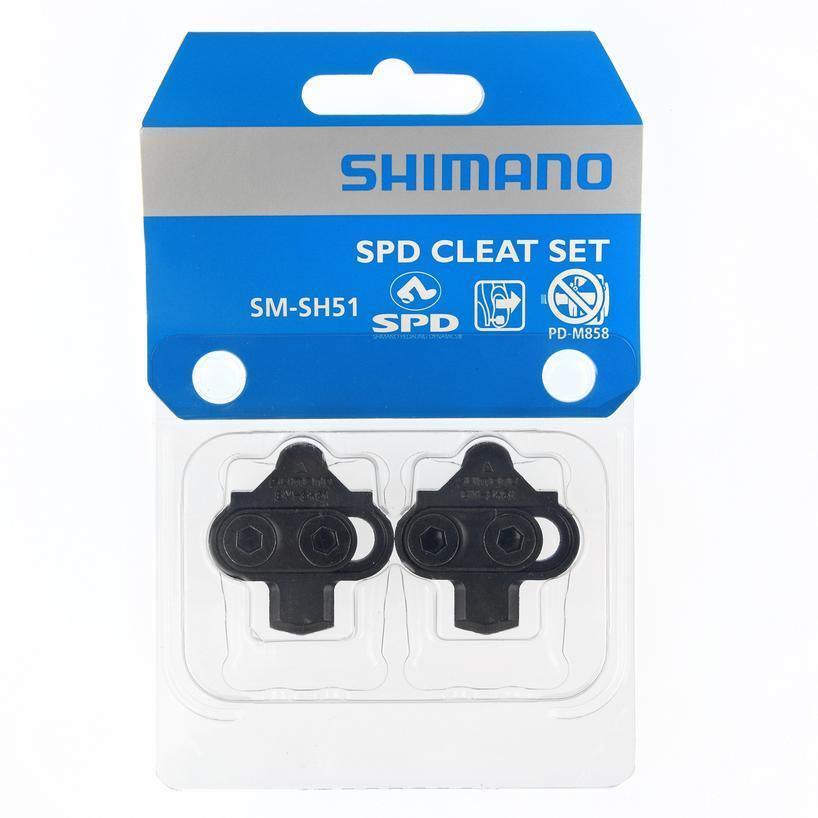

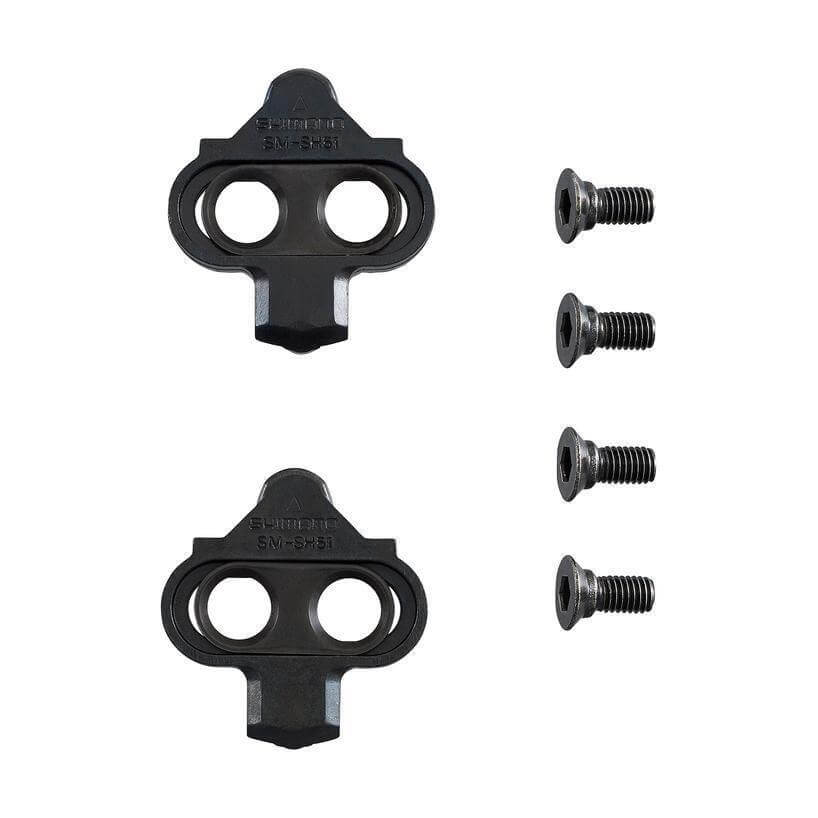

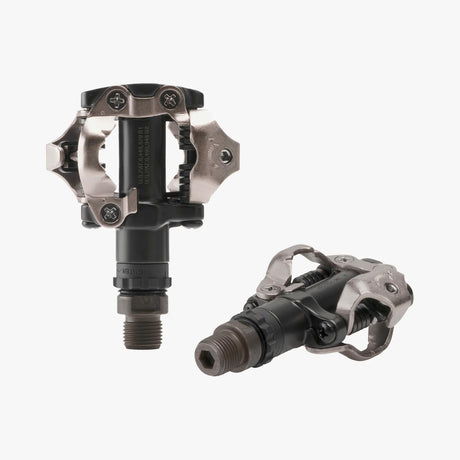

These are the cleats that come with your Shimano SPD Pedals. The SH-51 Cleats are black and have four degrees of float for your feet. Compared to the SH-56 multi-release Cleats, these are much more secure and are generally preferred for the experienced rider. To get out of your pedal, you'll have to swing your heel out a bit more than the SH-56 Cleats. Please Note: These will not work with older PD-M858 pedals (for those you'll need SH-52 Cleats). On that same note, if you have an aftermarket SPD-style pedal that isn't a Shimano branded pedal, these cleats are most likely not compatible with your pedals even though they might look remarkably similar to a Shimano pedal.

• Four degrees of float
• Slightly greater release angle than Multi-Release Cleats
• Not compatible with older, M858 pedals

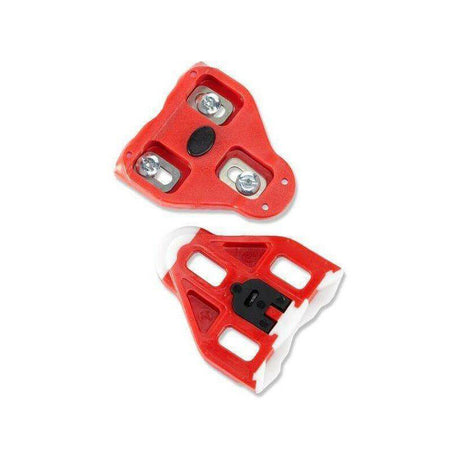

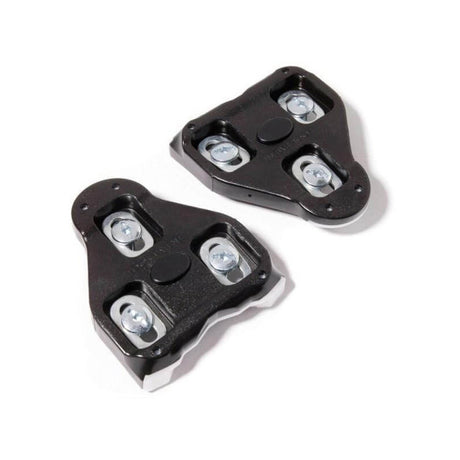

The DELTA standard requires a rotational movement of the foot toward the outside or inside for disengagement. This function improves cyclist's safety; no body or bearing prevents disengagement toward the inside. Compatible with non-KEO LOOK pedals, their contact area is wide for optimal comfort. They also feature a memory positioner to aid when changing cleats.

• Use: Road & Indoor Bike
• Material: Polyacetal + PTFE
• Lateral adjustment: 4mm
• Longitudinal adjustment: 12mm
• Weight (pair + fasteners): 75g

Cleats are one of those bits of kit that get overlooked, but Look's new Keo Grip Road Cleat is tougher to ignore than most. It has several obvious upgrades over most cleats, most noticeably non-skid rubber pads underneath the fore and aft portions of the cleat, but it's the unobtrusive central pad that's most exciting. Look calls it a Memory Clip, and it locks into the center groove found in many new cleats for secure attachment and easy replacement.

To suit all riders, the Keo comes in three versions: zero float (black), 4.5-degree float (grey), and 9-degree float (red). Each offers 4mm of lateral adjustment and 9mm of longitudinal adjustment and comes with all the necessary screws and washers for easy replacement.

• A grippy replacement cleat for Look Keo pedals
• Heel and toe rubber pads provide traction when off the bike
• Float options let you fine-tune your fit
• Memory clip makes cleat replacements simple and stress-free

BRING POWER TO YOUR PEDALS!

Rally XC200 | XC100 is tested to the extreme, so you can ride there too. This dual-sensing power meter delivers reliable power measurements and is easy to transfer between bikes, no matter what bike you’re on or where you're riding.g.

IMPECCABLY DESIGNED PEDAL

Rally power meters have undergone rigorous testing to ensure total reliability. Featuring a superior design with sensors housed inside, these sleek pedals install like any pedal. And they’re quick to transfer between bikes.

ADVANCED CYCLING DYNAMICS
In addition to total power and cadence, Rally Pedals measures much more. These metrics help you tailor your training around your specific weaknesses and strengths to help you improve.

LEFT/RIGHT BALANCE
Measure power from your left leg versus power from your right leg to get a better look at how symmetrically you’re producing power.

SEATED VS. STANDING
Track the amount of time you spend in each position and gauge position effectiveness.

POWER PHASE
Get a clear look at where you’re producing power in the pedal stroke.

PLATFORM CENTER OFFSET
Ensure proper cleat position by keeping track of where power is applied on the pedal.

CLEAT COMPATIBILITY
For a comfortable ride, these pedals are designed with your favorite Look Keo, SHIMANO SPD, and SPD-SL cleats in mind.

TRANSFERABLE SPINDLE
From road to gravel to cyclocross and much more, keep riding year-round. A transferable spindle can be installed in Rally RK road or Rally™ XC off-road pedal body kits (each sold separately).

BATTERY LIFE
Make sure you’re ready for those long rides and training sessions with up to 120 hours of battery life.

SPECS

• Battery type: LR44/SR44 (x4)
• Battery life: up to 120 hours (with LR44 battery type)
• Weight: 444 g
• Water resistance: IPX7
• Max. rider weight: 105 kg
• Accuracy: +/- 1.0%
• Cleat type: SHIMANO SPD
• Q-factor: 53 mm/55 mm with supplied spacing washer
• Stack height: 13.5 mm
• Field calibration
• Adjustable release tension
• Garmin Connect™
• Measurement location: Spindle
• Communication: ANT+® and Bluetooth®

Faster by Design.

Whether gunning for the podium or just wanting to finish strong, the SPEEDPLAY AERO road pedal is aerodynamically engineered to defy wind and boost speed with less effort. The unique 3-axis adjustability allows you to dial in your cleat positioning, micro-adjust your float up to 15 degrees, and decrease your stack height for the most aerodynamic fit on your bike.

FEATURES

ENHANCED WALKABILITY
The slim profile cleat and rubber texture create enhanced stability when walking in your road shoes off the bike.

AERODYNAMIC PROFILE
SPEEDPLAY AERO and Standard Tension Cleat form an elegant and seamless integration that creates an aerodynamic profile. Not only is this a sleek look on the bike, but the decreased drag makes higher speeds easier to hit.

UNBEATABLE STACK HEIGHT
Best-in-class stack height of the SPEEDPLAY pedal decreases the amount of material between your shoe and spindle. This provides a solid connection for a more fluid transfer of power with every pedal stroke.

3-AXIS CLEAT ADJUSTABILITY
The Standard Tension Cleat can be positioned on the bottom of the shoe and adjusted fore-aft, left-right and rotationally, allowing between 0-15 degrees of float.

OPTIMIZED BIOMECHANICS
The 3-axis adjustability and slim stack height of the SPEEDPLAY Advanced Pedal System allows the rider to customize their fit on the bike with the largest range of optionality. The lower stack height can allow for increased power transfer and a decreased saddle height, which results in reduced drag.

ROTATIONAL FREE FLOAT
SPEEDPLAY pedals allow up to 15 degrees of float, allowing the heel to pivot around the center of the pedal. This range of motion in the foot, lower leg and knee increases comfort and enhances pedal efficiency.

SUPERIOR CORNERING CLEARANCE
The slim profile of the SPEEDPLAY Advanced Pedal System allows for the greatest degree of lean on the bike when riding tight corners. Pedal with confidence knowing your pedal won't strike the ground, and leave the competition in the dust.

STANDARD TENSION CLEAT INCLUDED
SPEEDPLAY AERO pedals include a set of Standard Tension Cleats and cleat surrounds for the most aerodynamic profile & walkable system.

EASY TENSION CLEAT COMPATIBLE
SPEEDPLAY Advanced Pedal System has cross cleat compatibility. Purchase the Easy Tension Cleat, sold separately, for less resistance when unclipping.

TECH SPECS

• Part Number: WFPRA1S53
• Physical Dimensions: 3.9" x 2" x 2"
• Shipping Weight: 1.18lb
• Box Dimensions: 5.9" x 2" x 3.9"
• Country of Origin: Vietnam
• Weight: 224g per pair
• Stack Height: 11.5mm (3 hole) 8.5 (4 hole)
• Q Factor: 53mm
• Body Material: Grivory
• Spindle Material: Stainless Steel
• Bearing Type: Triple Sealed Cartridge & Needle Bearings
• Cornering Clearance: 37°
• Max Rider Weight: No restriction
• Cleats: Standard Tension Included
• Release Angle: Micro Adjustable from 0° to 7.5°
• Pedal Float: Adjustable from 0° to 15°
• Cleat Fore - Aft Adjustability: Up to 13mm
• Cleat Left - Right Adjustability: Up to 8mm
• Walkable Cleat: Yes (adaptor included)

IN THE BOX

• Left and Right Pedals
• Cleat Assembly
• Screw Packet
• Quick Start Guide
• Important Product Information Guide

Additional Tools Required for Assembly: #2 Philips Head Screwdriver and 8mm Allen Wrench
