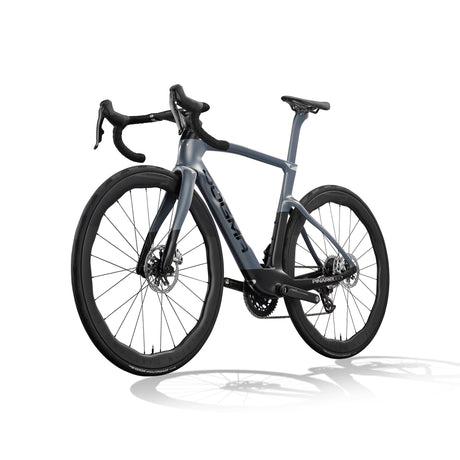

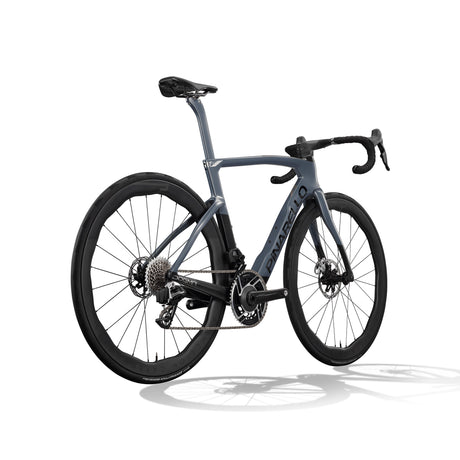

Dogma F12 Disk Frameset
PI‐20‐F12D‐51‐BSTL
Regular price $6,499.99The Dogma F12 frame and fork have many refinements that have been developed in order to provide an aerodynamic advantage. The results are a drag reduction of 7.3% and a savings of 8 watts at 40km/h compared to the Dogma F10.
To enhance the F12’s responsiveness and the power transmission, the chainstay cross-sections have been completely redesigned to increase stiffness without adding weight. The new cross-section in combination with the Torayca 1100 1K, the best carbon available, ensures an improvement in lateral stiffness by 10%.
The biggest improvement on the Dogma F12 is the complete cable routing integration. The PinaLab developed a specific handlebar and headset design that enables the correct cable functionality and allows integration of all possible brake & gear combinations (disc or rim; mechanical or electronic).
The new integrated handlebar, the Most Talon Ultra, is 10.3% lighter, 8.6% stiffer and is 5% more efficient through drag compared to the Most Talon Aero.
Features And Benefits
Frame:
- Carbon Torayca T1100 1K Dream with Nanoalloy Technology
- Asymetric Frame
- TICR™ Total Internal Cable Routing
- E-Link™
- Italian thread BB
- Seatclamp TwinForce
- 3XAir™ two positions available for the second bottle
- FlatBack Profile
- UCI Approved
- Drop in Bearing System 1”½ - 1”½
- Max Tire 700x28mm
- RAD SYSTEM Disk brake
- Front Axle 100x12mm Shimano
- Rear Axle 142x12mm Shimano
- Disk Flat Mount max 160mm
SPECS
Frame Material | Toray T1100 1K Dream Carbon |
Wheel Size | 700c |
Fork | Onda F12 |
Head Tube Diameter | 1-1/2 - 1-1/8 |
Headset Included | yes |
Bottom Bracket Type | Italian threaded 70mm |
Cable Routing | internal |
Front Derailleur Mount | direct-mount |
Brake Type | direct-mount rim |
Compatible Components | electronic, mechanical |
Seatpost | Dogma |
Seatpost Diameter | aerodynamic |
Seat Collar | integrated |
Recommended Use | road cycling |
Manufacturer Warranty | 2 years |
GEOMETRY

GEOMETRIES
CC | CF | L | I | A[0] | B[0] | F | P | T | D | R | G | REACH | STACK |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
420 | 415 | 498 | 113 | 74.4 | 69.15 | 564 | 406 | 94 | 67 | 43 | 373 | 348.9 | 498.3 |
440 | 435 | 503 | 118 | 74.4 | 70 | 564 | 406 | 99 | 67 | 43 | 373 | 354.3 | 506 |
465 | 455 | 515 | 125 | 74.4 | 70.5 | 573 | 406 | 104 | 72 | 43 | 373 | 364.8 | 517.6 |
470 | 455 | 525 | 128 | 74 | 71.4 | 575 | 406 | 114 | 72 | 43 | 373 | 370.5 | 530.2 |
500 | 480 | 525 | 138 | 74 | 71.4 | 575 | 406 | 109 | 72 | 43 | 373 | 372.1 | 525.4 |
515 | 495 | 535 | 145 | 73.7 | 72 | 577 | 406 | 114 | 72 | 43 | 373 | 378 | 532.3 |
530 | 510 | 545 | 149 | 73.7 | 72.5 | 583 | 406 | 123 | 72 | 43 | 373 | 383.3 | 542.6 |
540 | 520 | 550 | 154 | 73.4 | 72.8 | 583 | 406 | 131 | 72 | 43 | 373 | 385 | 551.2 |
550 | 530 | 557 | 157 | 73.4 | 72.8 | 590 | 408 | 142 | 72 | 43 | 373 | 388.8 | 561.6 |
560 | 540 | 565 | 164 | 73 | 73.2 | 591 | 408 | 149.5 | 72 | 43 | 373 | 390.7 | 570.2 |
575 | 555 | 575 | 168 | 73 | 73.7 | 596 | 408 | 163 | 72 | 43 | 373 | 396.7 | 584.8 |
595 | 575 | 587 | 180 | 72.4 | 73.4 | 605 | 408 | 199 | 67 | 43 | 373 | 393.3 | 613.3 |
620 | 615 | 620 | 192 | 72 | 73.4 | 633 | 411 | 239 | 67 | 43 | 373 | 410.1 | 651.7 |
