Advanced aerospace engineering facilitates better speed through the breakthrough of dynamic cross-section variability – WAKE – which yields lower drag and reduced effects of vortex shedding. Optimized mechanical design paired with advanced manufacturing increases stress distribution and enables weight reduced layup schedule. Laced to your choice of ultra-light TUNE or bombproof White Industries.
Princeton CarbonWorks WAKE 6560 breaks industry benchmarks and forces discerning riders to recalibrate aerodynamic, strength, stability, and weight expectations. In 4 years of research and development WAKE was wind-tunnel confirmed, road-tested, gravel verified and race-proven, join us and leave the competition in your wake.

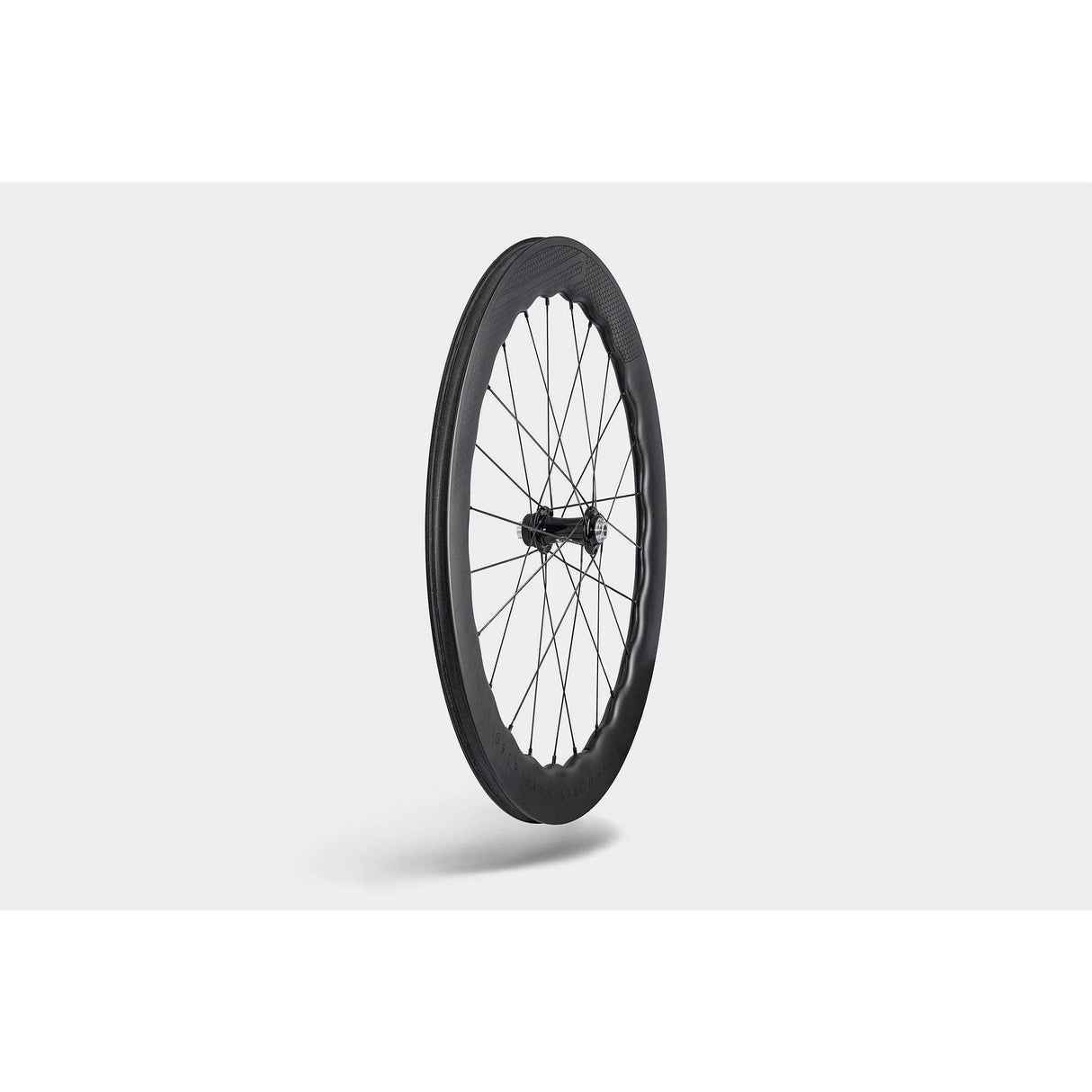

WAKE 6560 has symmetrical front and rear rim profiles that each contain 24 sinusoidal oscillations, resulting a revolutionary shaped rim varying between 60 and 65mm deep. Full carbon and tubeless-ready, the rim profile is laced to your choice of WHITE INDUSTRIES or TUNE Hubs, and are available in Rim or Disc brake versions. In addition to individual wheel build reports, each UCI-registered set of WAKE 6560s is delivered with (when necessary) skewers, tubeless tape and valves, PCW padded wheel bags, and SwissStop Black Prince brake pads.
Chris King, DT Swiss, Industry9 and Aivee hubs available with extra lead time. Email firstname.lastname@example.org to inquire about a custom set.
|Weight, Front||RIM BRAKE: 675g (WI) 657g (TUNE)|
|Weight, Rear||RIM BRAKE: 870g (WI) 780 (TUNE)|
|Internal Rim Width||18mm|
|Max Rim Width||26mm|
|Max Rim Depth||65mm|
|Min Rim Depth||60mm|
|Nipples||Sapim® Secure Lock|
|Spoke Count||16/24 (24/24 available upon request)|
|Hub Type||White Industries, TUNE, CK R45 Standard, CK R45 Ceramic, DT Swiss 180EXP|
|Free Hub Body||Shimano 11S, SRAM XDR, Campagnolo|
