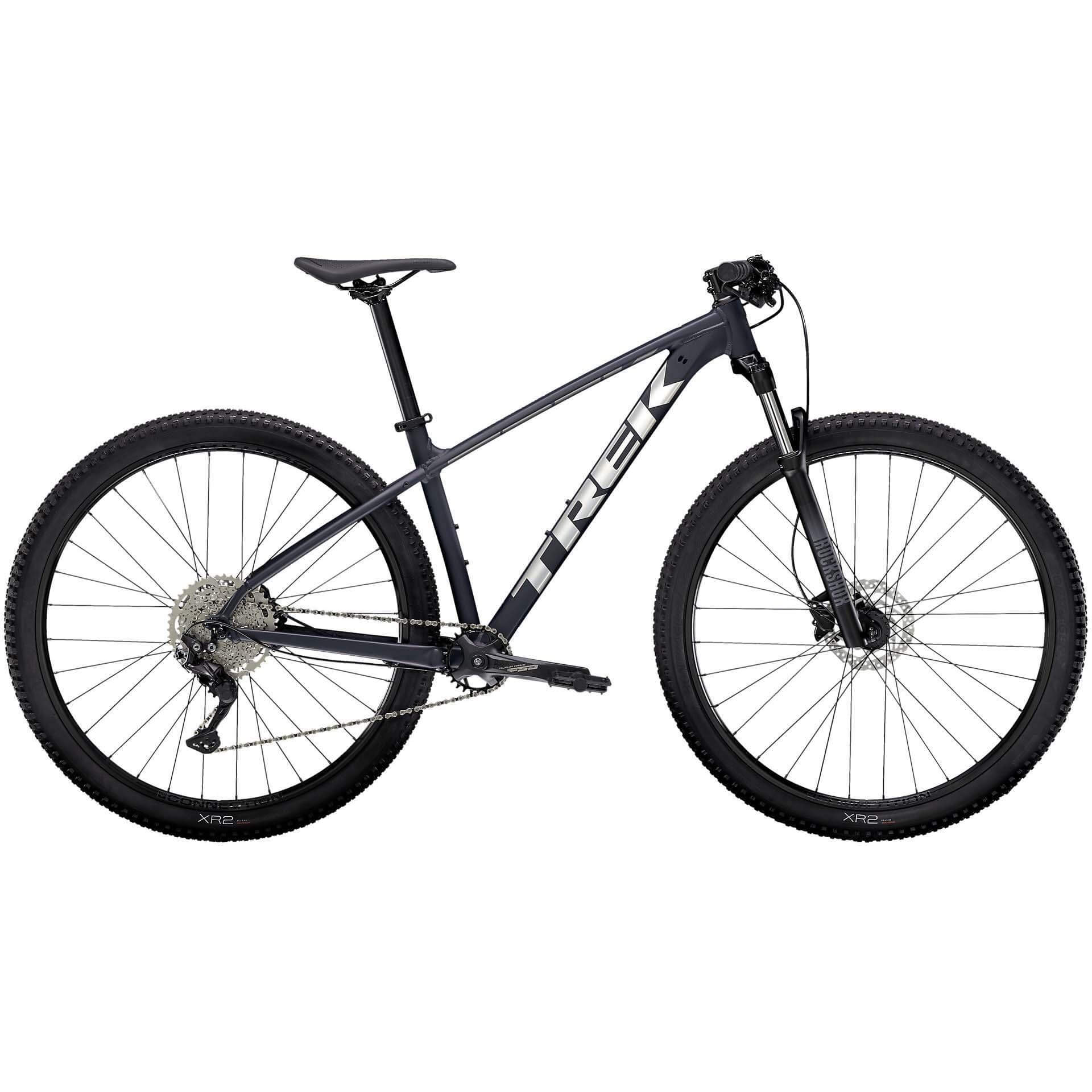

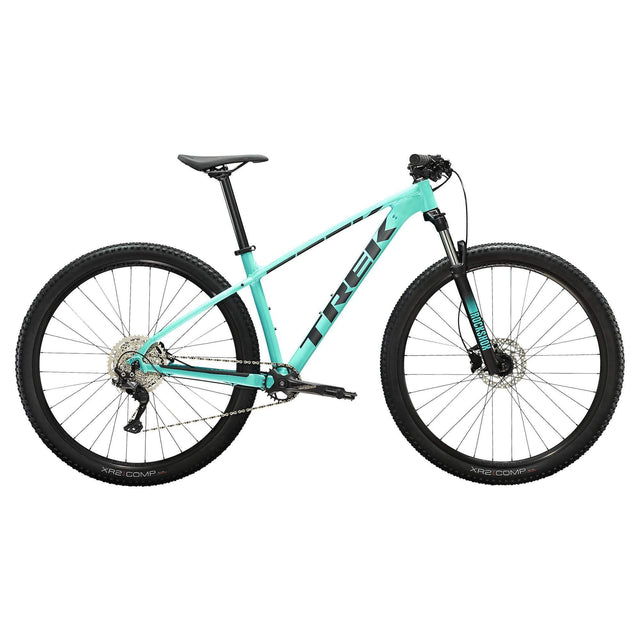

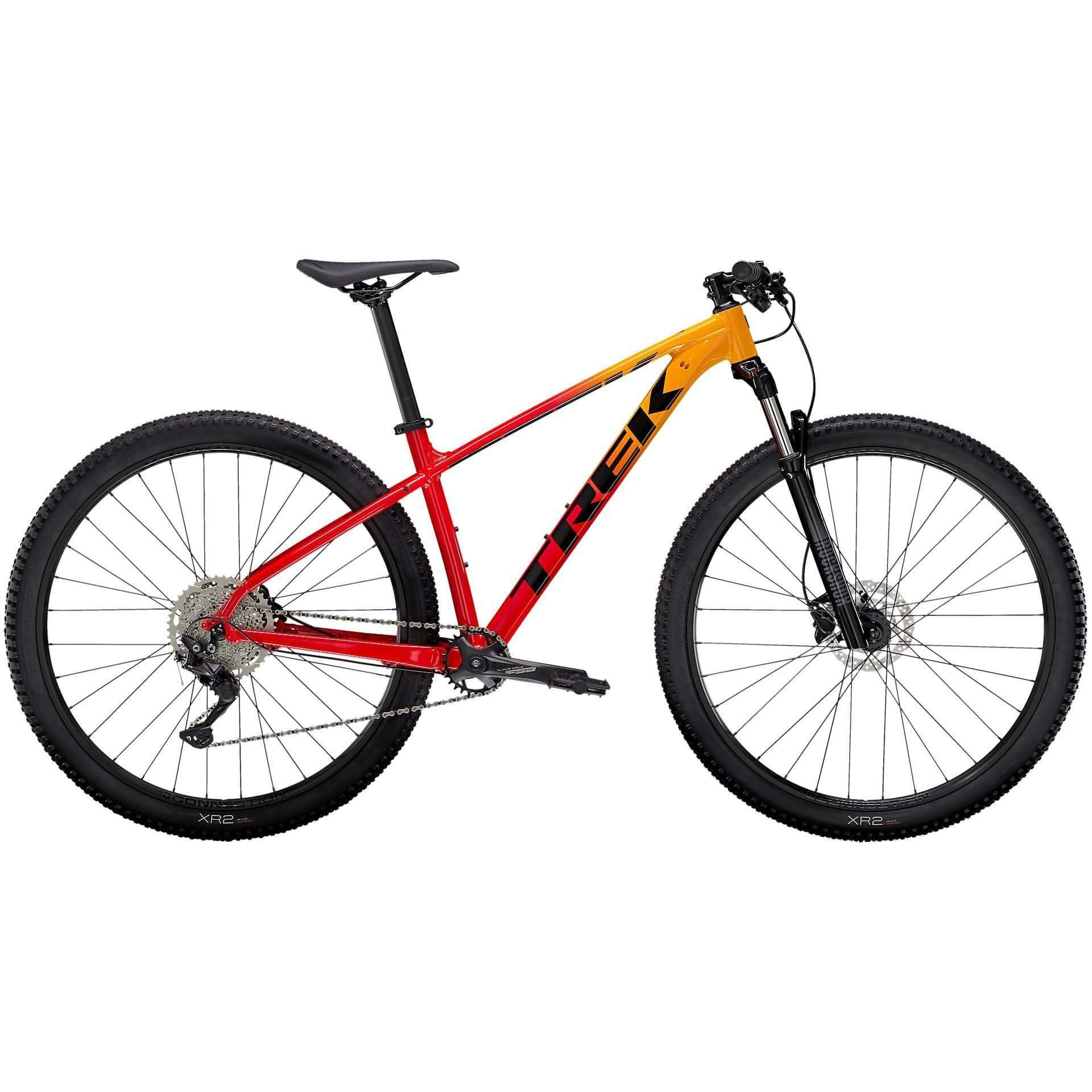

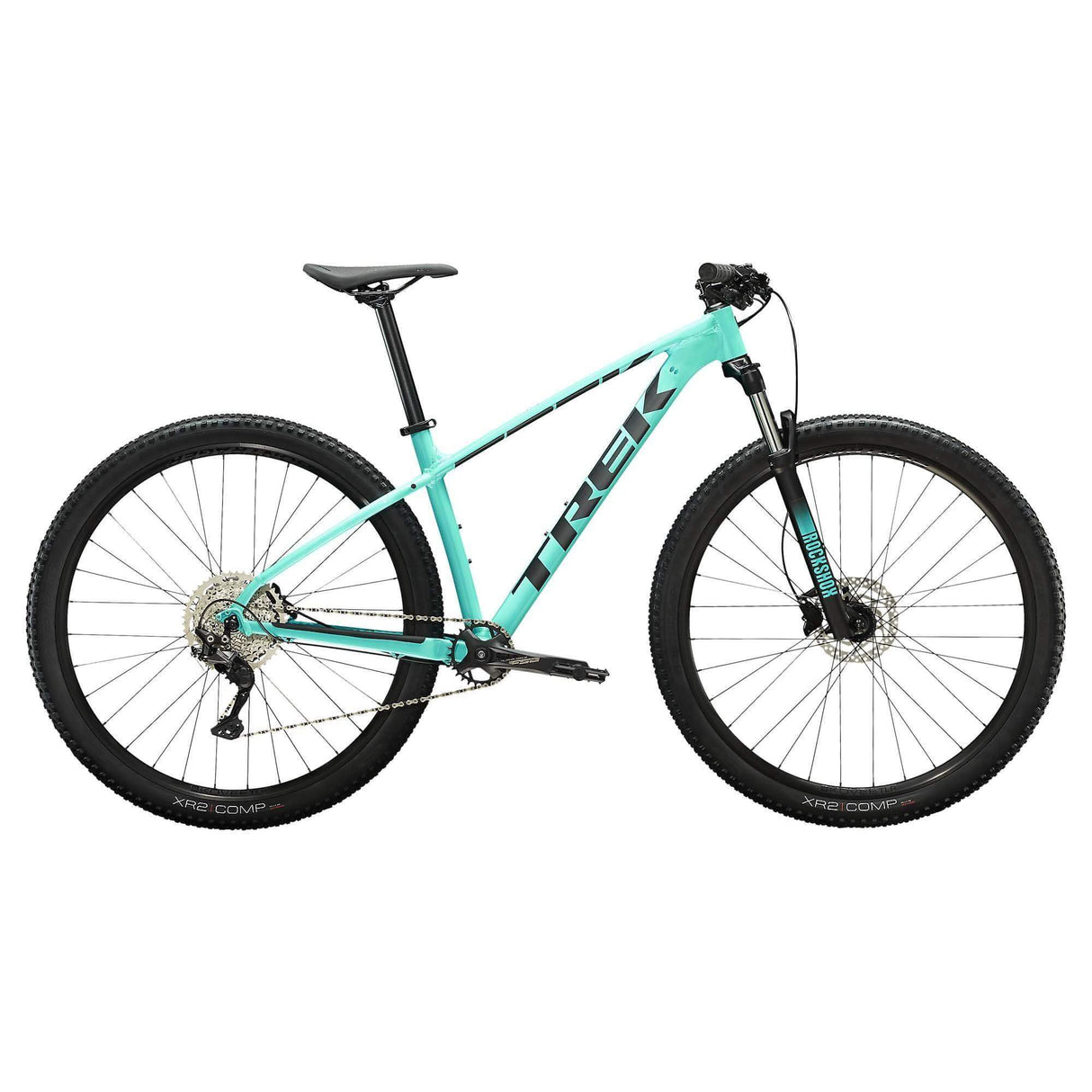

Trek Marlin 7
Marlin 7 is where race-worthy mountain bikes begin. The smooth, lightweight RockShox fork and upgraded parts make this model the best choice for new riders who want a fast cross-country hardtail that will hold its own against our higher-end race bikes.
It's right for you if...
You're new to the trail but have serious singletrack aspirations, and want a versatile, race-worthy mountain bike with upgrades on the parts that make a big difference in performance, like a higher quality suspension fork and a simple 1x drivetrain.
The tech you get
A light frame with internal shift cable and brake hose cable routing, a smoother-feeling RockShox Judy fork with a lockout, Shimano hydraulic disc brakes, and Bontrager wheels. A simple 1x drivetrain ditches the front derailleur for less clutter and easier operation. Don't worry, with the wide-range 11-46 cassette, you still get all the gears you need for clawing up climbs and blazing down descents.
The final word
The RockShox suspension, wide range of gearing, and quality parts make it the best choice in the Marlin lineup for new mountain bikers who know they want a serious bike for their money. It’s fully capable of taking on big trail adventures and XC races.
Why you'll love it
- This is one of our most popular bikes for good reason. You get all the value, plus all the versatility—it's a totally race-worthy mountain bike, with rear rack mounts if you use it for commuting too
- It's really fun to ride and feels like a much more expensive mountain bike
- Great suspension at an even better price
- The 1x drivetrain gives you all the gears you need and none you don’t
- Marlin models in XS through S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
Specifications
Frame |
Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
*Fork | Size: XS |
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel | |
Size: S | |
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel | |
Size: M , ML , L , XL , XXL | |
RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel | |
Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
Rim | Bontrager Connection, double-wall, 32-hole, 20mm width, presta valve |
Spokes | 14g stainless steel |
*Tire | Size: XS , S |
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20'' | |
Size: M , ML , L , XL , XXL | |
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20'' | |
Max tire size | Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer |
Shifter | Shimano Deore M4100, 10 speed |
Rear derailleur | Shimano Deore M5120, long cage |
*Crank | Size: XS , S , M |
FSA Alpha Drive, 28T steel ring, Boost, 170mm length | |
Size: ML , L , XL , XXL | |
FSA Alpha Drive, 28T steel ring, Boost, 175mm length | |
Bottom bracket | FSA, 73mm, threaded cartridge, 122.5mm spindle |
Cassette | Shimano Deore M4100, 11-46, 10 speed |
Chain | KMC X10, 10 speed |
Pedal | VP-536 nylon platform |
Max chainring size | 1x/2x: 34T, 3x: 42T |
Saddle | Bontrager Arvada, steel rails, 138mm width |
*Seatpost | Size: XS , S , M |
Bontrager alloy, 31.6mm, 12mm offset, 330mm length | |
Size: ML , L , XL , XXL | |
Bontrager alloy, 31.6mm, 12mm offset, 400mm length | |
*Handlebar | Size: XS |
Bontrager alloy, 31.8mm, 5mm rise, 690mm width | |
Size: S , M , ML , L , XL , XXL | |
Bontrager alloy, 31.8mm, 5mm rise, 720mm width | |
Grips | Bontrager XR Trail Comp, nylon lock-on |
*Stem | Size: XS |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length | |
Size: S | |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length | |
Size: M | |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length | |
Size: ML , L | |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length | |
Size: XL , XXL | |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length | |
Headset | Semi-integrated, 1-1/8'' |
Brake | Shimano MT200 hydraulic disc |
*Brake rotor | Size: XS , S , M , ML , L , XL , XXL |
Shimano RT26, 6-bolt,160mm | |
Size: L , XL , XXL | |
Shimano RT26, 6-bolt,180mm | |
Weight | M - 29.70 lbs / 13.47 kg |
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
