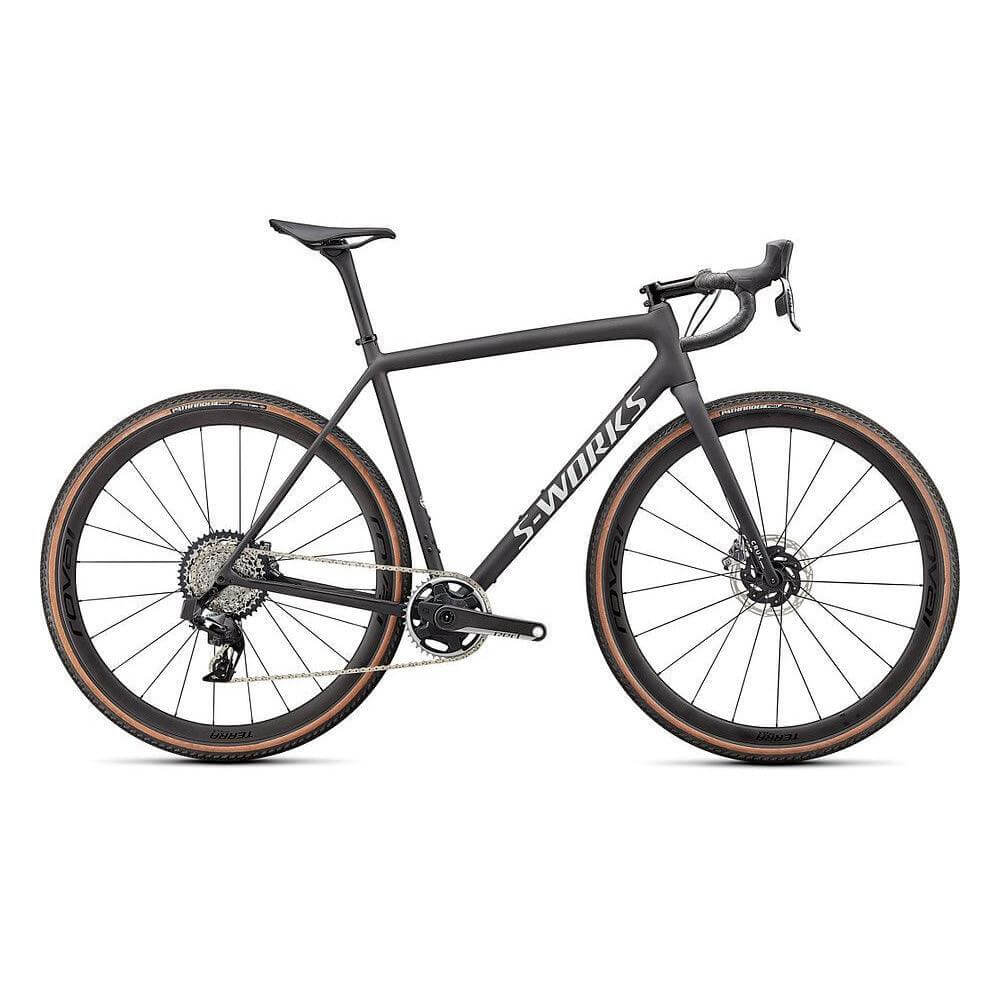

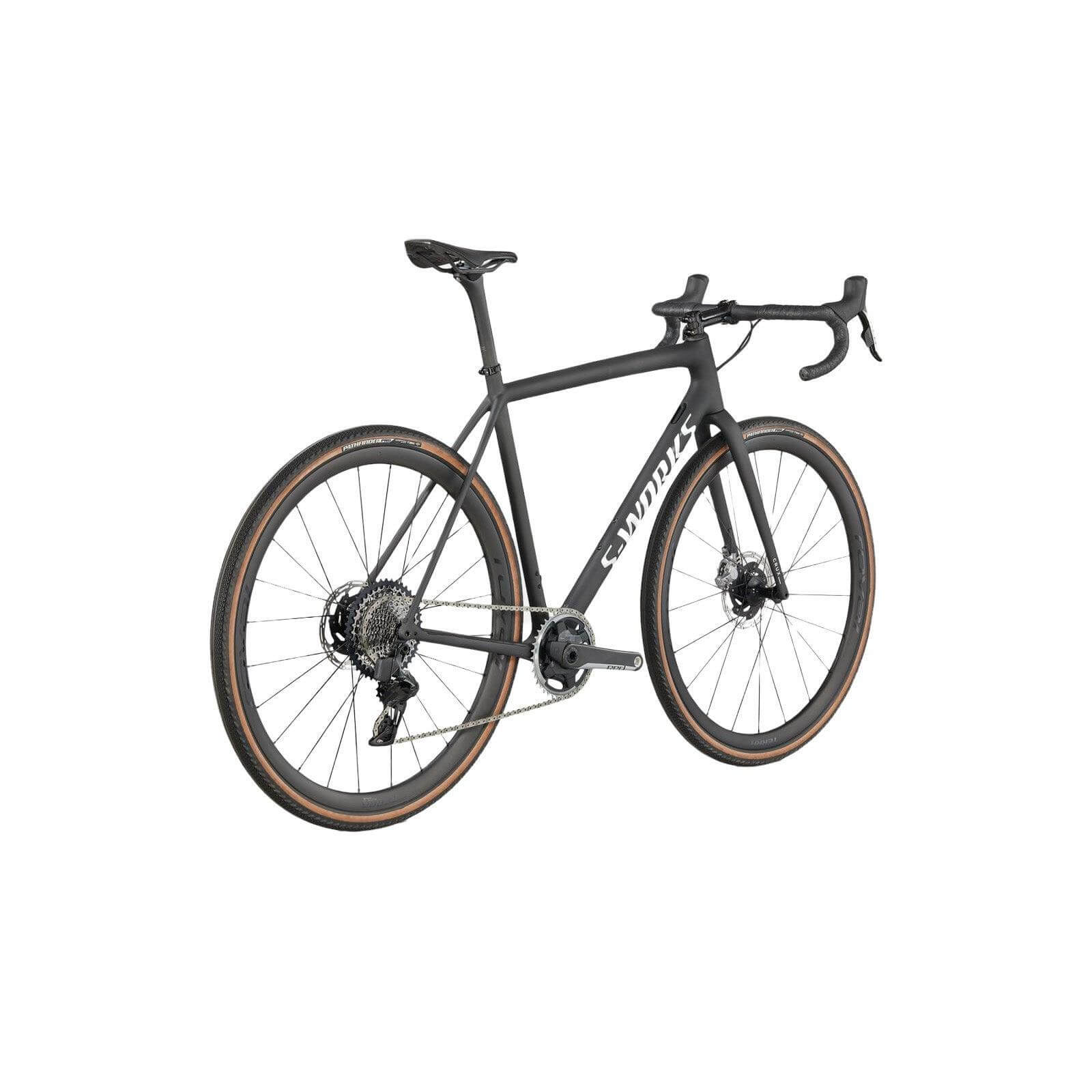

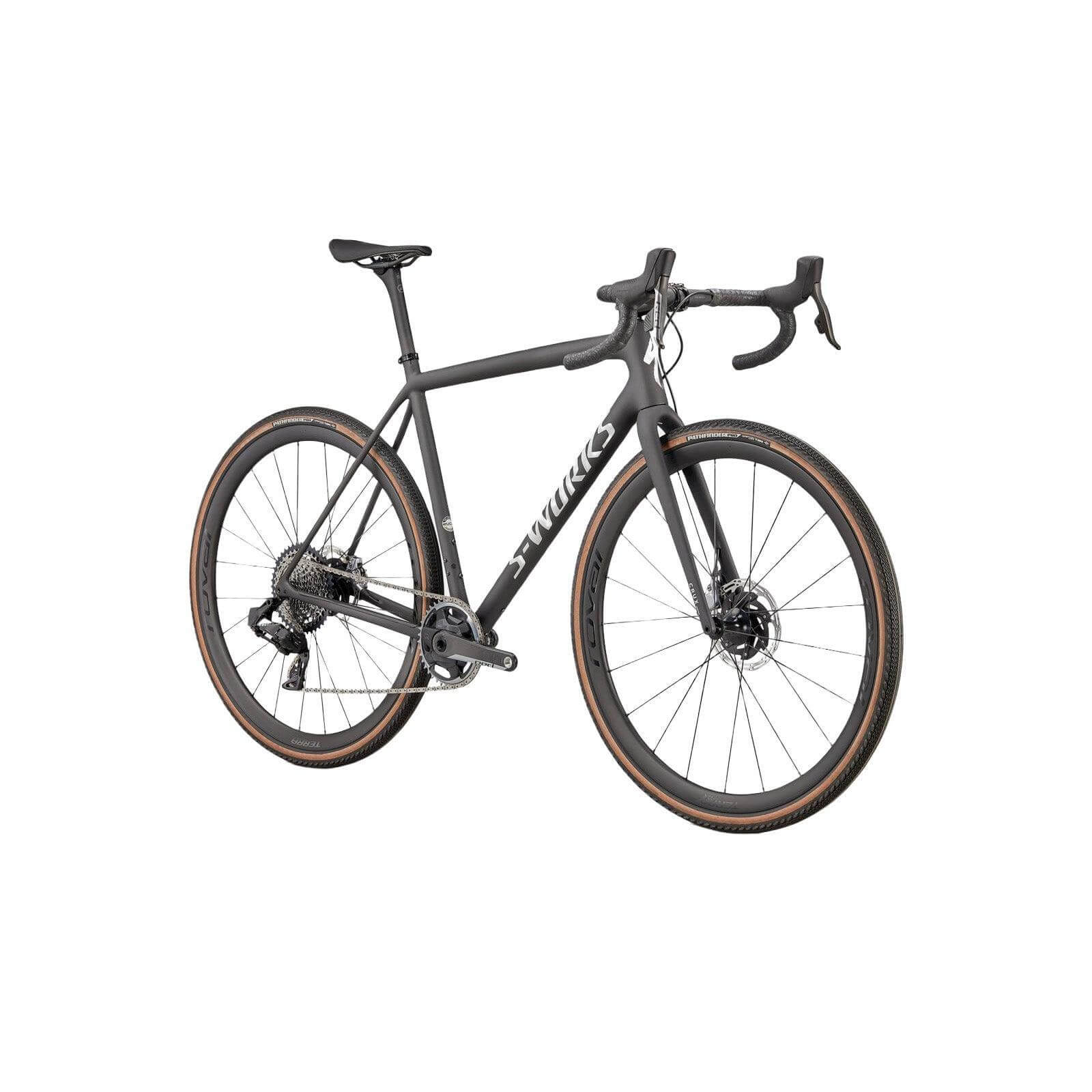

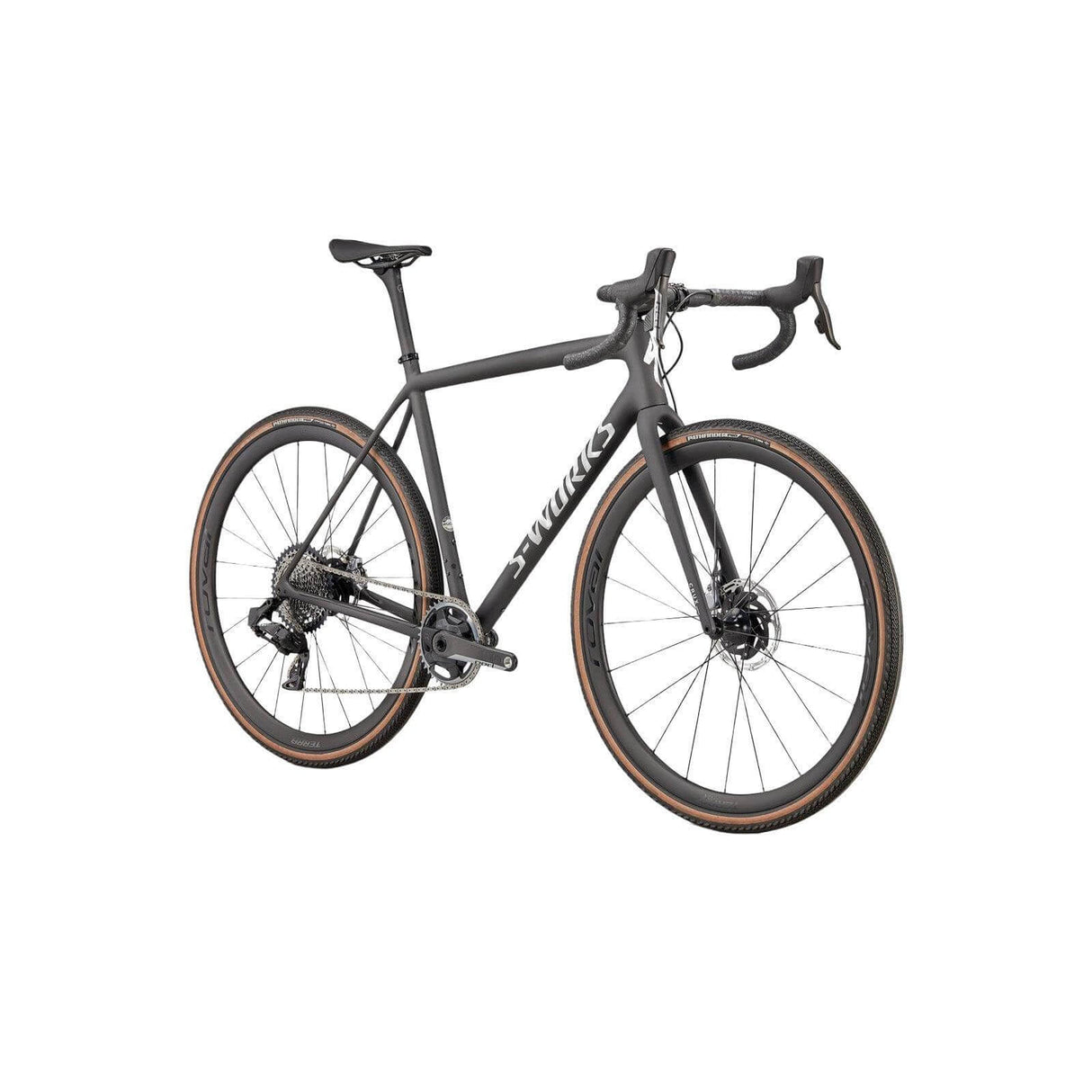

S-Works Crux
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
This S-Works Crux comes spec'd with SRAM's pinnacle RED eTap AXS hydraulic disc groupset, lightweight and durable Roval Terra CLX Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
Technical Specifications
| Frame | S-Works CruX FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Handlebars | Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare |
| Stem | S-Works SL, alloy, titanium bolts, 6-degree rise |
| Tape | Supacaz Super Sticky Kush |
| Saddle | Body Geometry S-Works Power, carbon fiber rails, carbon fiber base |
| SeatPost | Roval Alpinist Carbon Seatpost |
| Seat Binder | Specialized Alloy, 30.0mm, titanium bolt |
| Front Brake | SRAM RED eTAP AXS, hydraulic disc |
| Rear Brake | SRAM RED eTAP AXS, hydraulic disc |
| Shift Levers | SRAM Red eTap AXS |
| Rear Derailleur | SRAM Red XPLR eTap AXS |
| Cassette | SRAM XPLR, XG-1271, 12-speed, 10-44t |
| Crankset | SRAM Red AXS Power Meter |
| Chainrings | 40T |
| Bottom Bracket | SRAM DUB BSA |
| Chain | SRAM RED 12-speed |
| Front Wheel | Roval Terra CLX |
| Rear Wheel | Roval Terra CLX |
| Front Tire | Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c |
| Rear Tire | Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c |
| Inner Tubes | Presta valve, 48mm |
