Enve SES 5.6 Disc
The ultimate disc brake specific, aerodynamic, and lightweight road race wheelset.
The SES 5.6 Disc is optimized aerodynamically and structurally for disc use. Road cyclists and triathletes on disc brake bikes will benefit from the SES 5.6 Disc’s reduced drag, lightweight design, and rim shape optimized for larger volume road tires.
- ENVE's quick mid-depth wheelset for road racing and triathlons
- SES carbon construction balances aerodynamics and stability
- Unidirectional construction adds durability while dropping grams
- Centerlock disc brakes improve braking in variable weather conditions
- Healthy internal rim width is optimized for 25mm and wider tires
- Tubeless compatibility lets you lower pressure to roll fast and smooth
- Molded spoke holes boost strength to weight ratio
- ENVE once again redefines the carbon aero wheelset
What's Included
Tubeless Kit (Clincher only):
- 2x valve stems
- 1x roll of tape (good for taping 3 wheels)
- 2x Pressure Relief Valve Stem Nuts
Valve Extenders (45mm set)
Skewers 100/135mm (QR only)
Accessory Bag
Wheel Manual
Wheel build Card
Technical Specifications
CLINCHER | FRONT | REAR | WHEELSET |
Rim Weight | 449g | 477g | 926g |
ENVE Alloy | 700g | 853g | 1553g |
i9 Torch Road CL | 711g | 856g | 1567g |
Chris King R45 CL | 711g | 856g | 1567g |
TUBULAR | FRONT | REAR | WHEELSET |
Rim Weight | 386g | 413g | 798g |
ENVE Alloy | 637g | 788g | 1426g |
i9 Torch Road CL | 620g | 787g | 1408g |
Chris King R45 CL | 648g | 791g | 1440g |
RIM SPECS | FRONT | REAR |
Rim Depth | 54mm | 63mm |
Internal Width | 20mm | 19mm |
External Width | 28.75mm | 28mm |
Hole Count | 24 | 24 |
Effective Rim Diameter | 548mm | 532mm |
Aero Optimized Tire Size | 25c | 25c |
SPOKE INFORMATION* | SPOKE CROSS | FRONT LENGTH (NDS/DS) | REAR LENGTH (NDS/DS) |

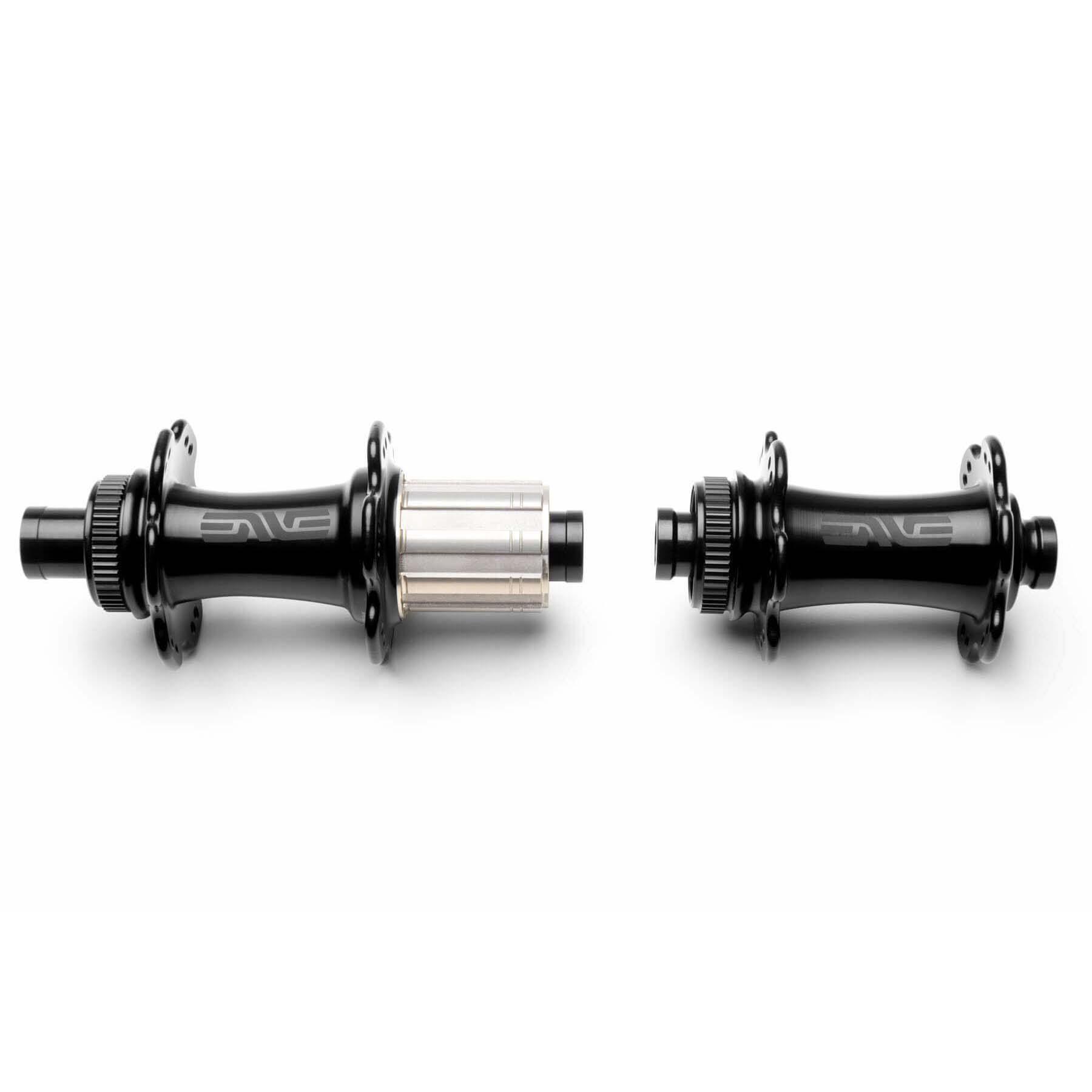

ENVE Alloy | 2X | 266mm / 268mm | 260mm / 258mm |

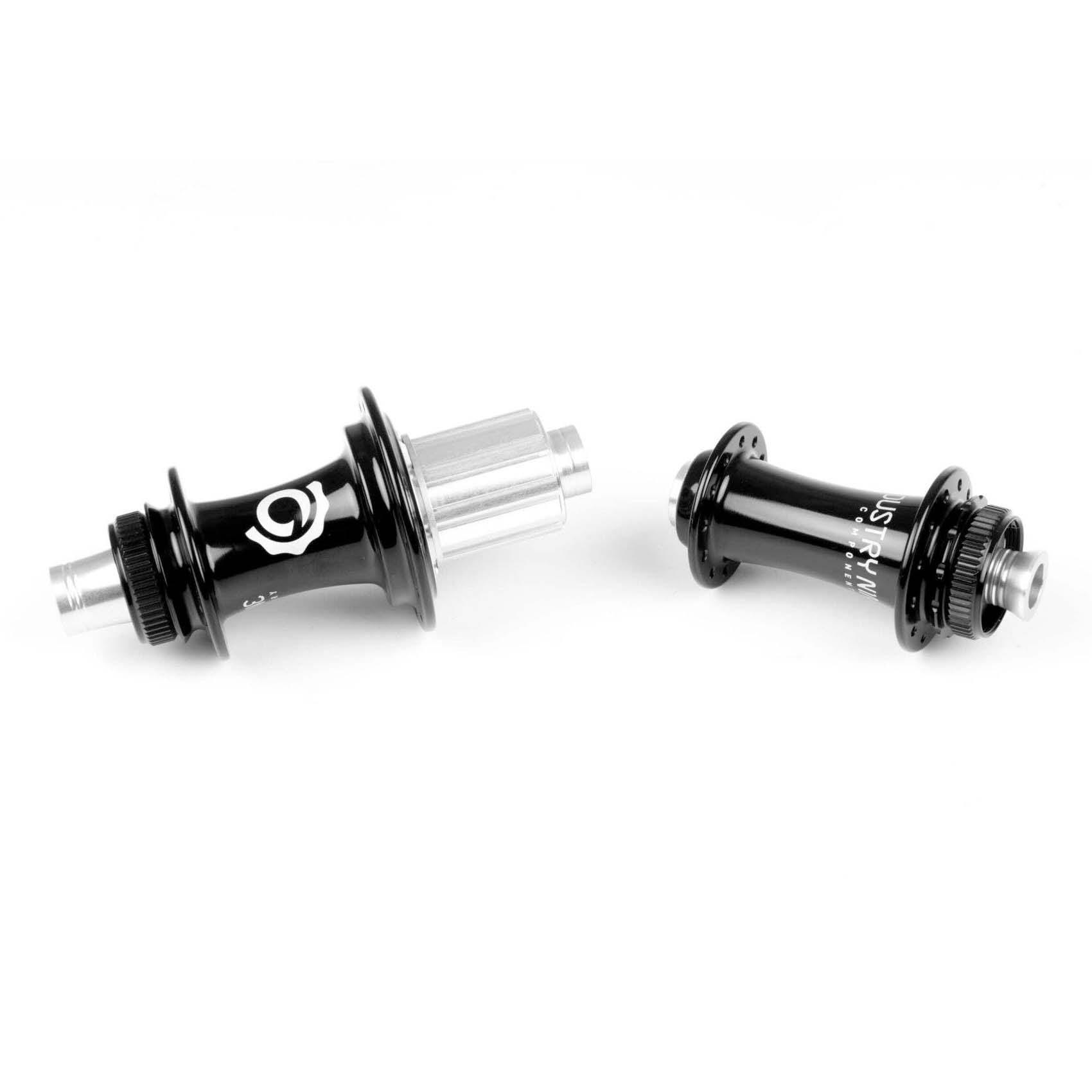

DT240 CL QR, 12mm, 15mm/142mm | 2X | 264mm / 266mm | 256mm / 254mm |

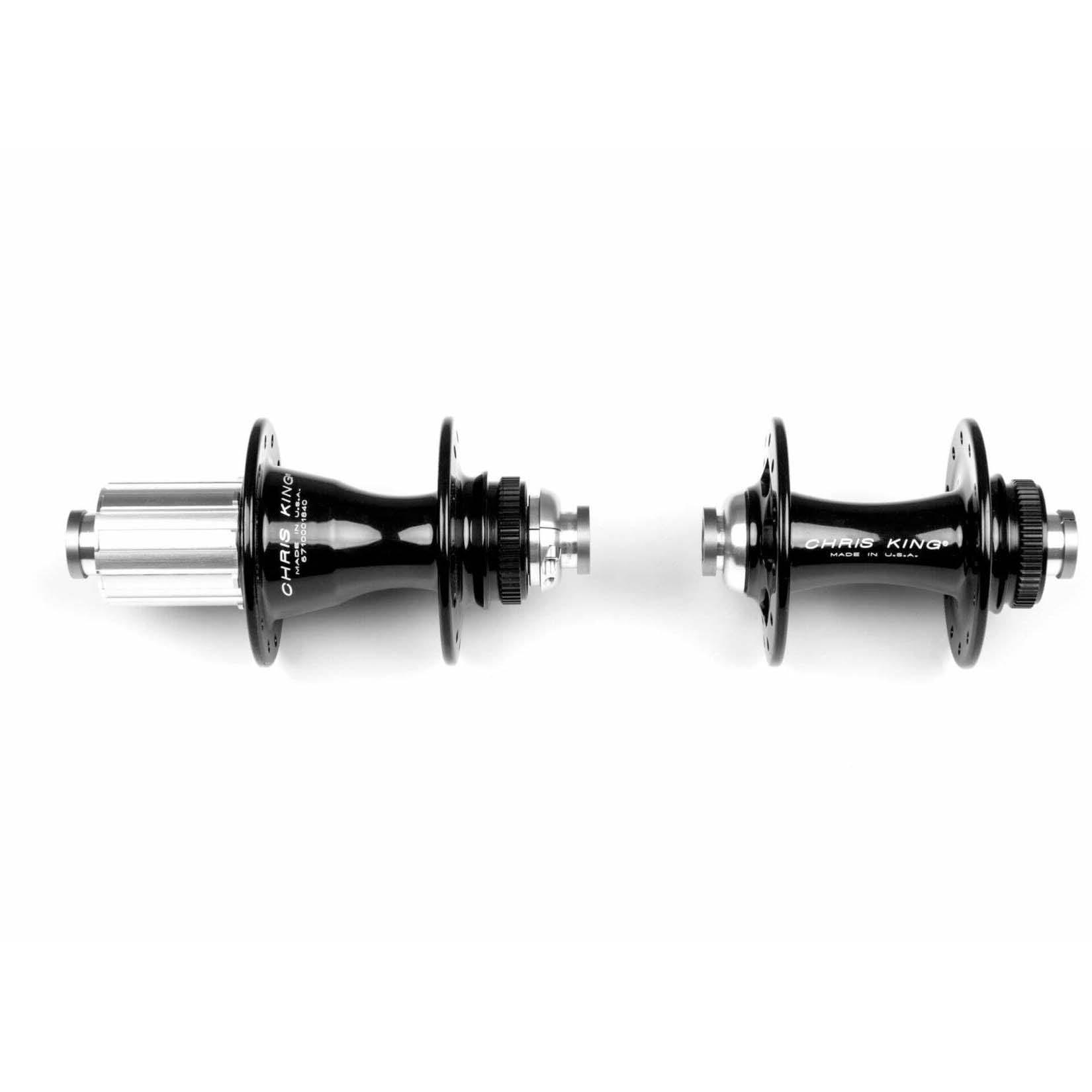

Chris King R45 | 2X | 260mm / 262mm | 254mm / 252mm |
Chris King R45 CL | 2X | 260mm / 260mm |
254mm / 252mm |
*This wheelset is built with Sapim CX Ray spokes. Those built before May 2018 may use a DT Swiss spoke equivalent. DT Swiss spoke heads are stamped "DT".
Tire Compatibility
ENVE SES 2.2, 3.4, 5.6, 7.8, 3.4 Disc, 5.6 Disc, 7.8 Disc, SES Rear Disc Wheel – There are no limitations on tire compatibility with these wheel models. Your ENVE SES wheels may be set up and run with inner-tubes and non-tubeless tires or tubeless (TL) and tubeless ready (TLR) tires alike. We recommend the use of a Tubeless (TL) or Tubeless Ready (TLR) 700x25c tire set up tubeless to maximize aerodynamics, rolling resistance, crosswind stability, and your ride experience.
Non-Tubeless Setup (i.e. I want to run inner-tubes) – Each ENVE SES wheelset is delivered with one roll of RED, model specific, ENVE tested and approved tubeless rim tape. This tape should be installed regardless of whether you intend to run your wheels tubeless or not. Do not run cloth or plastic (including ENVE) non-tubeless compatible rim tape or strips. Plastic rim strips and cloth tapes are too thick, bridge the drop-center rim channel, and will make installation and removal of tires extremely difficult. Click here for our tubeless tape installation video.
Cotton and/or Natural Fiber Sidewall Tires – ENVE does NOT RECOMMEND the use of cotton or natural fiber sidewall non-tubeless tires with ENVE SES wheelsets for EVERYDAY USE. These tires are intended for high-performance racing applications only. If you choose to run these tires, please inspect your tires after each ride for cuts, tears, and any signs of abrasion and/or wear in the sidewall and at the location of the rim/tire interface. If any wear and/or damage is identified, replace before riding. Riders who choose to run tires with cotton or natural fiber sidewalls do so at their own risk.
